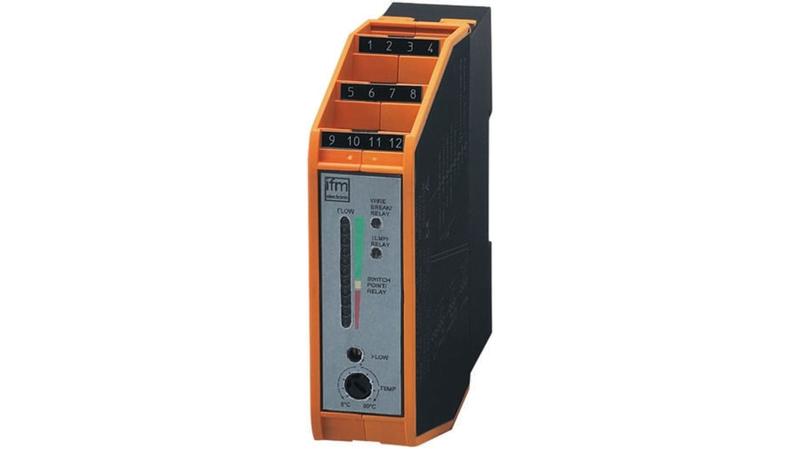

SN0150 ifm electronic DIN Rail Mount Flow Controller, Relay Output, 90 → 240 V ac

ifm electronic Control Monitor For Flow Sensor_x000D_ The ifm electronic control monitor for flow sensor operates. It has 3 switching functions one is relay energised when the flow is present and during the power-ON delay time for flow monitoring, second is relay energised when the temperature is exceeded for temperature monitoring and third is relay de-energised in case of wire break or short circuit for wire break monitoring. The input supply voltage rating ranging between 90VAC and 240VAC. The sensors are connected via pre-mounted comb icon connectors with screw terminals. The slim (25mm) control cabinet housing can be easily mounted on a DIN rail._x000D_ Features and Benefits_x000D_ For the connection of flow sensors_x000D_ Adjustable switching outputs for monitoring flow and temperature_x000D_ Clearly visible multi-coloured LED bar graph display_x000D_ Signal output via potential-free relay contacts with 4A current rating at 230VAC_x000D_ Switch points configurable using a potentiometer_x000D_ DIN rail mounting_x000D_ Power consumption is 4VA_x000D_ Combicon connector for electrical connection_x000D_ Applications_x000D_ Flow, temperature and wire-break monitoring_x000D_ Industrial use_x000D_ Certifications_x000D_ CE certified_x000D_ UL listed
