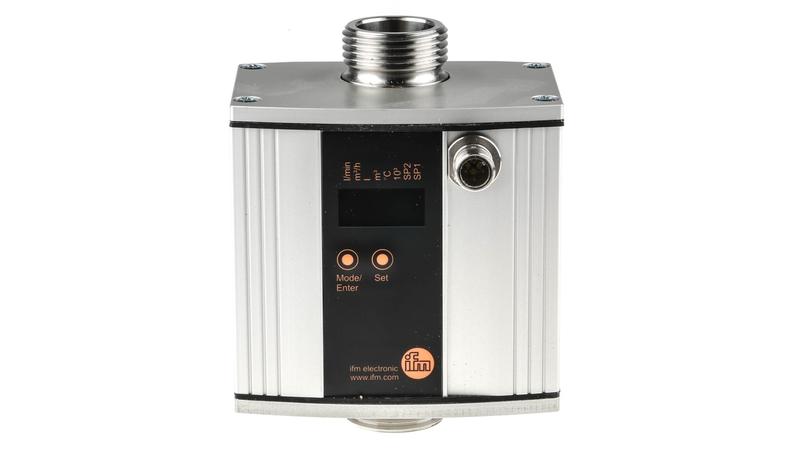

SU8000 ifm electronic SU Series Ultrasonic Flow Meter for Liquid, 0 L/min Min, 100 L/min Max

ifm electronic Flow Meter_x000D_ The ifm electronic SU series electronic ultrasonic flow meter measures the liquid flow rate of 0L/min to 100L/min. The flow metre monitors liquid media such as water, glycol solutions, or industrial oils. It detects the 3 process categories, namely volumetric flow quantity, consumed quantity and medium temperature. The user can access and adjust the peak consumption, present consumption, or accumulated consumption via programmed switch and alarm level settings, all at the touch of a button._x000D_ Note:_x000D_ Threaded (or push-fit) connecting adapters are not included with the volumetric flow sensor_x000D_ Suitable connectors may be sourced (depending on the type required), for example, a G3/4 male to G3/4 female adaptor (RS stock no. 807-766), or similar_x000D_ Inclusions:_x000D_ 2 packing washers._x000D_ Features and Benefits_x000D_ Connection type is 1 BSP_x000D_ Maximum operating pressure is 16bar_x000D_ Maximum operating temperature is 60°C_x000D_ Required supply voltage range is 19VDC to 30VDC_x000D_ High accuracy, repeatability and measurement dynamics_x000D_ Clearly visible LED display_x000D_ It has volumetric flow quantity, total quantity and temperature indication_x000D_ The process connection is G flat seal_x000D_ The units feature 2 switching outputs that can be programmed as normally open or normally closed_x000D_ For consumed quantity monitoring, the other output transmits counting pulses to the controller_x000D_ The robust stainless steel housing and high protection rating provide high security even in harsh environments_x000D_ Depending on the volumetric flow quantity to be detected, devices with different process connections are offered_x000D_ Certifications_x000D_ CE certified_x000D_ UL listed_x000D_ EN 61000-4-2_x000D_ EN 61000-4-3_x000D_ EN 61000-4-4_x000D_ EN 61000-4-5_x000D_ EN 61000-4-6_x000D_ DIN IEC 68-2-27_x000D_ DIN IEC 68-2-6
