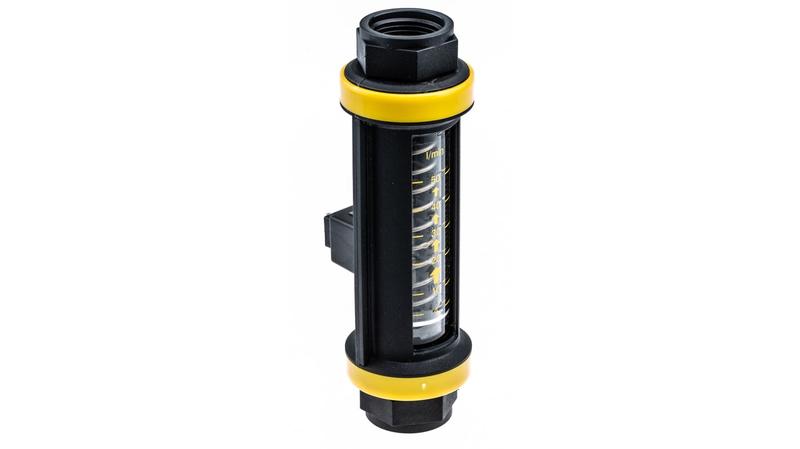

EF.7731112291 Parker UCC Easiflow Series Variable Area Flow Meter for Liquid, 4 L/min Min, 50 L/min Max

Parker UCC Flowmeter_x000D_ The Parker UCC Easiflow series variable area flowmeter measures a liquid flow rate of 4L/min to 50L/min. This flowmeter enabled with an AC-DC switch. It is suitable for controlling valves or pump motors or for activating alarm signals. This indicator has an operating voltage of 300VAC/DC._x000D_ Note:_x000D_ The switch is non-latching. Once the flow rate has passed the switching level, it will de-activate. If latching is required, a separate circuit containing a latching relay is necessary. All units are supplied with instruction leaflets._x000D_ Inclusions:_x000D_ 2 x DIN standard sockets complete with plugs._x000D_ Features and Benefits_x000D_ Pipe diameter range is 1in_x000D_ Connection type is 1 BSP female_x000D_ Maximum operating pressure is 10bar_x000D_ Maximum operating temperature is 60°C_x000D_ Media monitored is liquid_x000D_ It works in any plane_x000D_ Pressures up to 10bar_x000D_ Accuracy ±5% FSD_x000D_ Repeatability ±1% FSD_x000D_ Fully adjustable flow rate signalling_x000D_ Plant and equipment protection
