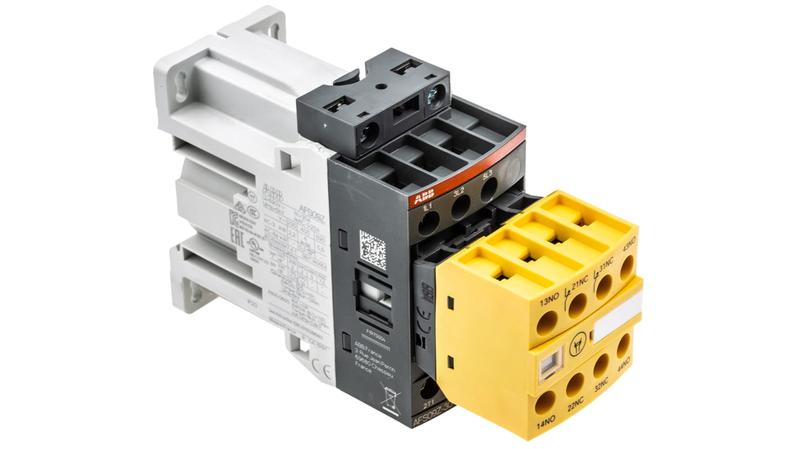

1SBL136082R3022 AFS09Z-30-22-30 ABB Jokab AFS09Z-30-22-30 AFS Contactor, 24 V dc Coil, 3 Pole, 25 A, 3NO

AFS 3P Safety Relay_x000D_ The ABB Jokab safety relay is a 3-pole and throw configuration relay. It has a coil voltage of 24VDC, contact current rating 25A and contact voltage rating 600VAC. It has a low holding consumption up to 1.7W, which reduces the panel energy consumption. It has a front marked symbol that guarantees the right contactor status._x000D_ Features and Benefits_x000D_ • Built-in surge suppression_x000D_ • Control circuit with an electronic coil interface_x000D_ • Dedicated 24VDC for direct control by PLC output_x000D_ • Front-mounted auxiliary contact block_x000D_ • Minimum switching capacity is 12V/3mA_x000D_ • Mirror and mechanically linked contacts_x000D_ • Protective cover to prevent manual operation_x000D_ Applications_x000D_ • Controlling circuits_x000D_ • Machine safety applications_x000D_ • Monitoring circuits_x000D_ Certifications_x000D_ • CSA C22.2 N°14_x000D_ • EN 60947-1 / 60947-4-1_x000D_ • IEC 60947-1 / 60947-4-1_x000D_ • UL 508
