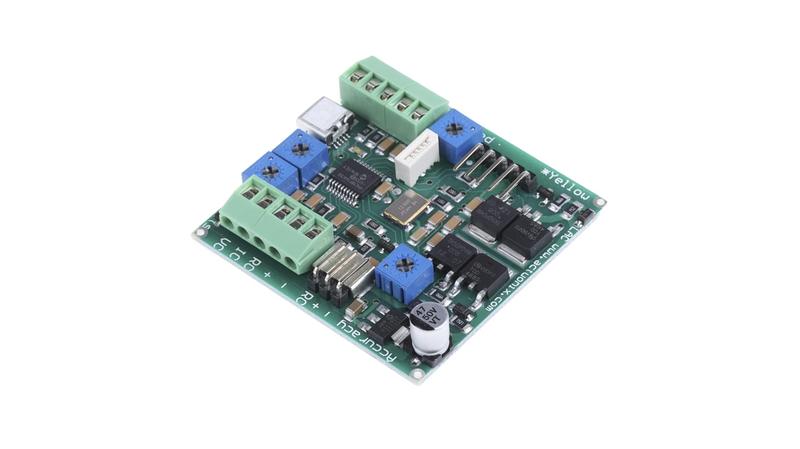

LAC-RS Actuonix, Linear Actuator Control Board, Analogue, Digital Control, 5 → 24 V dc, 4 A, Panel Mount

Linear Actuator Control Board_x000D_ The LAC board from Actuonix is a standalone closed loop control board specially designed for the P series actuators. By using this LAC board with Actuonix actuators you can greatly simplify motor control designs, saving cost and time._x000D_ Actuonix motor control IC uses a software-based algorithm which optimises position and speed control. The linear actuator board is then compatible with a wide range of actuators, using only the default settings._x000D_ Full customisation is possible due to Actuonix Advanced Configuration Program._x000D_ The LAC can be operated as an interface board or a standalone controller with the addition of an external potentiometer and power supply._x000D_ Control Modes_x000D_ 0 V to 3.3 V Interface Mode_x000D_ This mode allows an actuator to be controlled with just a battery, and a potentiometer to signal the desired position to the actuator._x000D_ RC Servo Interface Mode_x000D_ A standard hobby-type remote-control digital servo interface, compatible with servos and receivers from other manufacturers._x000D_ 4 mA to 20 mA Interface Mode_x000D_ This mode is compatible with PLC devices typically used in industrial control applications._x000D_ PWM Mode_x000D_ This mode allows control of the actuator using a single digital output pin from an external micro controller._x000D_ USB Mode_x000D_ This mode allows control of the actuator via the computer._x000D_ Features and Benefits_x000D_ • Several control modes available_x000D_ • Compatible with P series actuators_x000D_ • Can be operated as an interface board or standalone controller_x000D_ Application Information_x000D_ The LAC works with the PQ12-P, L12-P, L16-P and P16-P series actuators. It can also be able to drive other larger actuators that have position feedback._x000D_ Note_x000D_ A 6 vdc or 12 vdc power supply is required for operation (not included)_x000D_ Micro Linear Actuators
