AL03006-5818-97-G1 Amphenol Advanced Sensors NTC Thermistor, 10kΩ, -50°C Min, 204°C Max

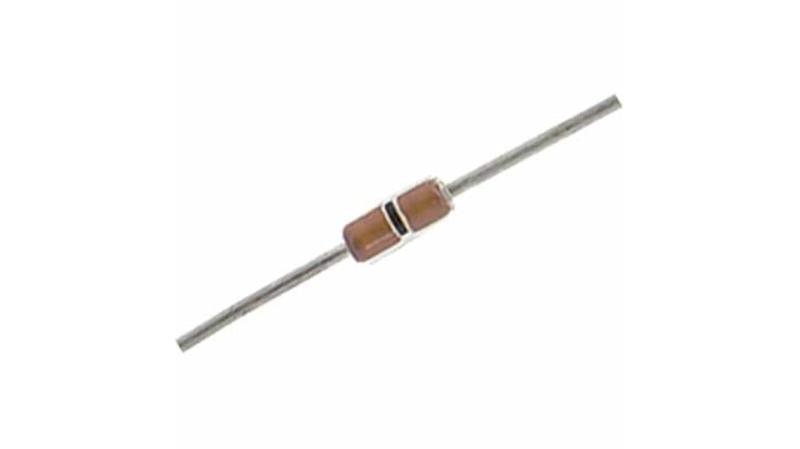

The Amphenol Advanced Sensors AL03006-5818-97-G1 Thermometric Diode Series of Glass-Encapsulated NTC Thermistors consists of a range of NTC chip thermistors in DO-35 style glass package (diode outline) with axial solder-coated copper-clad steel wires. Glass body provides hermetic seal and voltage insulation and excellent stability. Time Constant 7 seconds, Dissipation Constant 3.0 mW/°C, Standard Resistance Tolerance ±10% @ 77°F (25°C)._x000D_ Designed for accurate temperature measurement, control and compensation._x000D_ Tight tolerances on resistance and B value._x000D_ Operation up to 482°F (250°C) with excellent stability._x000D_ Glass body provides hermetic seal and voltage insulation and excellent stability._x000D_ Designed for cost effective solid state sensor._x000D_ Resistant to corrosive atmospheres and harsh environments.
