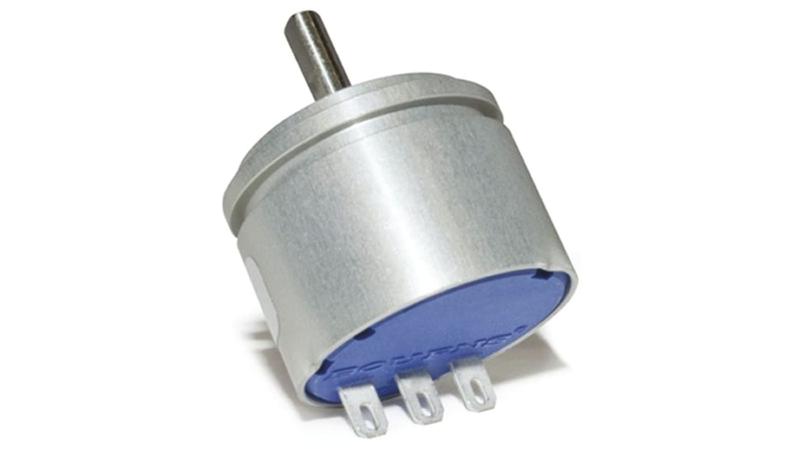

AMS22S5A1CLAFL336 Bourns Incremental Encoder, Analogue Signal, Solid Type, 1/8in Shaft

Non-Contacting Analogue Rotary Position Sensor - AMS22S Series_x000D_ The Bourns® AMS22S series Non-contacting Single-turn Hall Effect sensor is designed to meet the specifications for heavy-duty applications which require a long cycle life and high reliability._x000D_ The Bourns® AMS22S sensor is a highly versatile and accurate device with the following features:-_x000D_ Extremely low mechanical torque_x000D_ Servo mount configuration_x000D_ 12 bit resolution_x000D_ Programmable electrical angle from ten to 360 degrees_x000D_ Factory programmable zero position_x000D_ Highly resistant to vibration and shock_x000D_ Highly resistant to fluid or dust ingress_x000D_ Highly repeatable_x000D_ Recommended input voltage = 5V ±10%._x000D_ Standard independent linearity = ±0.5%_x000D_ Minimum recommended load resistance = 10k ohms_x000D_ Operating temperature range = -40°C to +125°C_x000D_ rotational life = up to 50 million cycles_x000D_ Rotary Position Sensor
