423918 Burkert Compact Mount Flow Controller, Analogue, Pulse, Relay, Totalizer Output, 12 → 30 V dc, DN 15 → 50

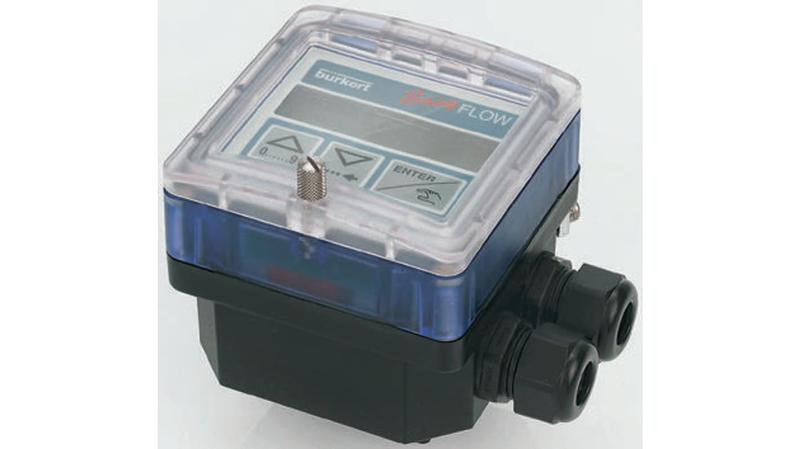

Flow Sensor Transmitter Module – Type SE35_x000D_ The principle of operation is when a liquid flows through the pipe, the paddle wheel in the fitting (S030 Flow Adaptor -available separately) is set in rotation inducing a measuring frequency in the transducer, which is proportional to the flow. The transmitter module will then operate and display in a variety of different modes._x000D_ Provides precise control of neutral and aggressive solid free liquids_x000D_ Sensor unit fitted via a bayonet to pipework flow adaptor fitting (S030 Flow Adaptor, see stock no. 249-7513 typically) which provides an interface for the module to measure, monitor and control liquid_x000D_ Transmitter display modes include; flow, output current, main totaliser, daily totaliser (& reset function)_x000D_ Flow displayed in litres/min., litres/hour, metres³/min, gallons/hour and US gallons/hour_x000D_ Modes and displays can be tailored when programming with full options on units and time measurement giving unlimited flexibility_x000D_ Simple, menu driven programming using the three pushbuttons_x000D_ Parameters in the programming mode: language, engineering units, K-factor (preset or defined by end user),teach-in function, filter and reset of main totaliser_x000D_
