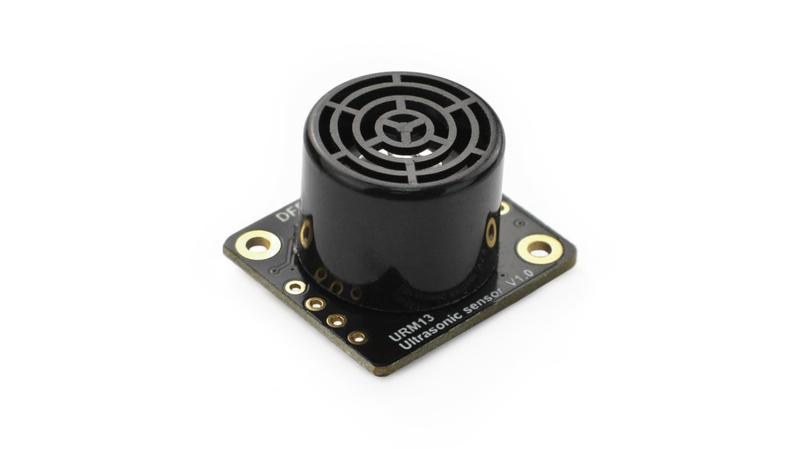

SEN0352 DFRobot Ultrasonic Barrel-Style Ultrasonic Sensor, 1900 mm Detection

The DFRobot URM13 is an ultrasonic ranging sensor with open single probe. This sensor supports TRIG Pulse-triggered ranging(SR04 compatible), UART and I2C, which brings more possibilities for actual using scenarios. With a small and compact body, the sensor works well with 3.3V or 5V mainboards like Arduino, Raspberry Pi, easy to use and integrate into various applications. Besides, the UART mode employs standard ModbusRTU protocol and integrates receive/send control output to allow users to easily expand RS485 interface using external RS485 transceiver. URM13 is positioned to be a professional and advanced ultrasonic sensor. The integration of new precision circuit design and smart detection algorithms on the sensor makes it much more smaller and lighter while still excellent in sensitivity._x000D_ Max instantaneous work current 350mA_x000D_ Effective measuring range 15cm～900cm_x000D_ Distance resolution 1cm_x000D_ Distance error ±1%_x000D_ Temperature resolution 0.1℃_x000D_ Temperature error ±1℃_x000D_ Measuring frequency 10Hz_x000D_ Operating temperature -10℃ to＋70℃_x000D_ Operating humidity RH<75%_x000D_ Sensor acoustic frequency 40±1KHz_x000D_ Sensor direction angle 60°(-6dB)
