S01DB/F68/1 Delta-Mobrey Liquid Level Switch Level Switch, SPST Output, Side Mount, Aluminium Bronze Body

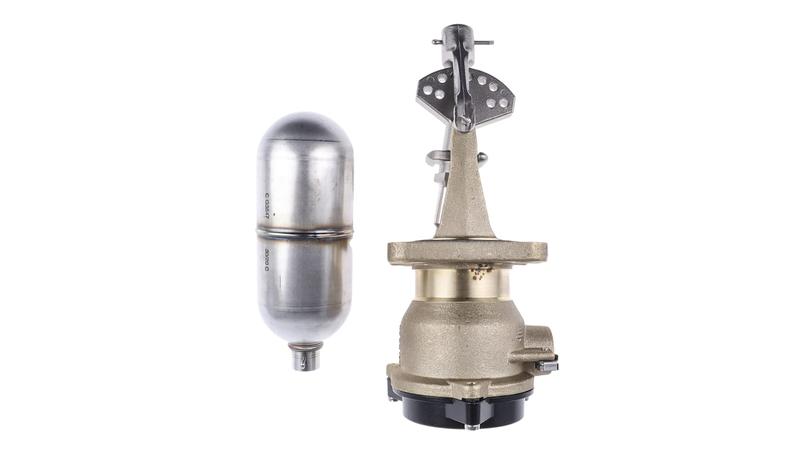

Mobrey Float Switch_x000D_ The Mobrey horizontal float switch consists of one-piece cast aluminium bronze body and 316 stainless steel float with a long straight arm. It is a side mounting magnetically activated liquid level switch. The switch is ideal for use in industrial applications, including pump control and as a low or high-level alarm._x000D_ Features and Benefits_x000D_ The maximum current is 2A (DC) and 5A (AC)_x000D_ Tough, rugged design for long life in aggressive environments_x000D_ Operates in almost any liquid_x000D_ Variable differential to adjust switching point_x000D_ Two off independent SPST voltage-free contacts (’snap action’) for alternative make and break circuits_x000D_ No contact ’hover’ or ’bounce’ for clean make or break_x000D_ M20 conduit entry with supplied cable gland (cable not supplied)_x000D_ Switch mechanism electrical with 2 independent single pole single throw (SPST) contact sets_x000D_ The enclosure is made of aluminium bronze_x000D_ Float standards is horizontal variable differential for pump control/alarm, 316 SST, minimum SG 0.72, 500 psi (34.5 bar)_x000D_ Certifications_x000D_ IP66 rated
