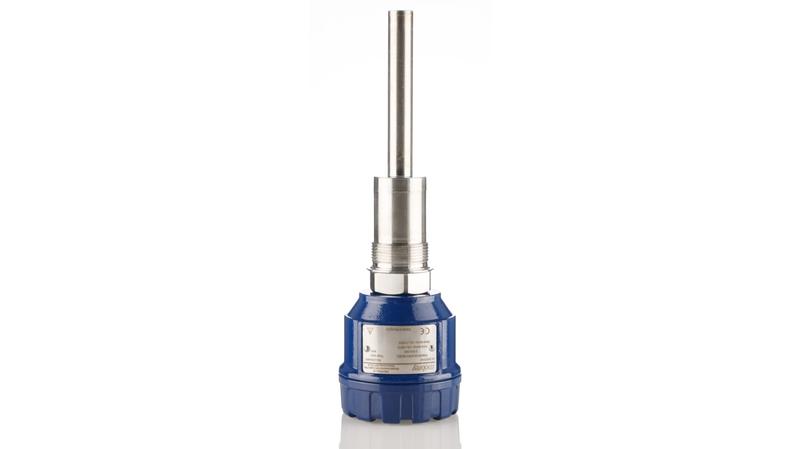

VLSKB131Z Delta-Mobrey Solids Level Switch Level Switch, Relay Output, Horizontal, Vertical, Aluminium Alloy Body

Mobrey Level Switch_x000D_ The Mobrey vibrating rod level switch is the perfect solution for single-point level switching in free-flowing solids across a wide density range, from fine powders to grains. A single rod design provides the solution to tuning forks which may become blocked or bridged. The vibration rod is energized and kept in resonance by an electronic circuit. When covered by material, the damping of the vibration is detected by the electronics which initiate the switching of the output relay after a built-in programmable time delay._x000D_ Supplied with:_x000D_ User manual, 2 – 3-pole terminal blocks, 1in sealing, 2 – Pg 16 cable glands._x000D_ How do you carry out an installation?_x000D_ Requiring only a 1in BSP/NPT socket, either on the top or in the sidewall of the silo, the unit is easy to install and simple to the commission._x000D_ Prior to installation, it is advised to check the switching function for proper adjustment on a sample quantity of material. The unit may not work with mediums within specified density range but having a very large size of granules or extremely little friction._x000D_ WARNING!_x000D_ Handle device with great care, especially the sensing probe. Any impact on the sensing probe can ruin its resonance system._x000D_ A protective shield should be installed if the probe is exposed to falling material or an excessive mechanical load._x000D_ Features and Benefits_x000D_ Standard model with 1 x SPDT alarm relay_x000D_ It has an operating voltage of 20VAC/DC to 255VAC/DC_x000D_ Housing standard is aluminium alloy with powder coated_x000D_ Standard R 1-1/2in BSPT mounting connection_x000D_ Free-flowing solids and it eliminates the clogging and ridging problems associated with forks_x000D_ Rod design prevents product bridging_x000D_ External LED switch status indication display and the probe is maintenance free_x000D_ Relay output_x000D_ Compact and rugged design and relay output_x000D_ Applications_x000D_ It is designed to provide high or low-level switching in silos or bins containing free-flowing powders and granular materials such as carbon black, sugar, grain, cement, lime and sand with a material bulk density on 50 kg/m3 or more_x000D_ Vibrating Liquid/Solid_x000D_ Level Probes - Squings_x000D_ Certifications_x000D_ ATEX II 1/2 D_x000D_ IP67 rated
