90AS Efergy 90AS Series Split Core Current Transformer, 12mm Bore

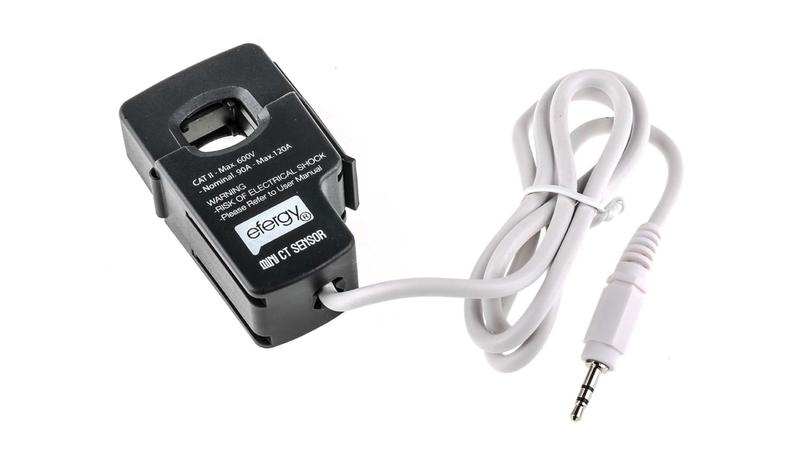

Efergy Mini Jackplug Extra Sensor_x000D_ The Efergy mini jackplug extra sensor is a device designed to measure and report the AC current flowing in a single conductor. The sensor voltage ranges between 110V and 300V and measuring current ranges between 50mA and 95A. It is very easy to install just clamp it on a conductor cable and plug it into the transmitter (it clamps around the insulated wire and measures the magnetic field). If operating a 3-phase with up to 90A/phase then 2 sensors will be required._x000D_ How it works_x000D_ All transmitters come with three spaces for sensors. Just look on the underside of the transmitter, take out the rubber cover of one of the spare spaces and plug in your additional sensor. Then attach it the same way as the previous one._x000D_ If you are purchasing a sensor for a monitor that you already own, check the connection type between the sensor and transmitter before ordering, to ensure you receive the correct product._x000D_ If you have an older monitor, you may require the old 'DC' style fitments of the sensor._x000D_ Features and Benefits_x000D_ Attaches around a cable of a diameter up to 16mm_x000D_ Compatible with the Efergy Elite and Elink energy monitors_x000D_ For monitoring 3-phase supplies_x000D_ Inner diameter is 12mm_x000D_ Split-core transformer_x000D_ Add it on your Engage system to monitor up to 5 circuits_x000D_ Ideal for residential properties_x000D_ Easy and quick to install_x000D_ Applications_x000D_ Data Loggers/DAS_x000D_ Digital or Analog Meters_x000D_ DMMs_x000D_ Recorders_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
