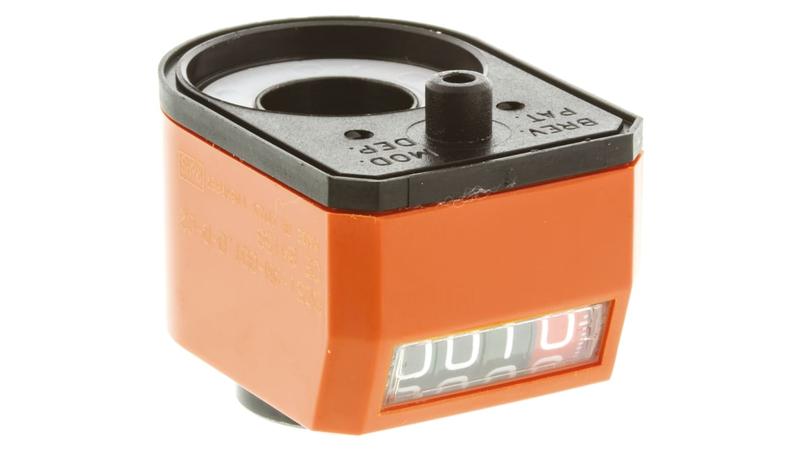

CE.84153 Elesa Counter, 4 Digit

Elesa Digital Mechanical Position Indicator_x000D_ The Elesa DD51 series mechanical resolution counter is a 4-digit direct drive, digital position indicator. It has clockwise shaft rotation with a maximum shaft speed of 250rpm. It is the black case, high-resistance, polyamide based (PA) technopolymer. It can be used for reading settings and outputs on machinery, as well as equipment requiring adjustment with the help of rotating shafts or lead screws._x000D_ Operating use:_x000D_ To give an exact reading of distance moved by relating the reading of the indicator to the thread pitch of the shaft or lead screw (type dependant on the pitch -see table)_x000D_ To count the number of turns of a shaft (types 001.00 or 0001.0) for an operator to set a specific setting to perform a given function_x000D_ Fitting Instructions:_x000D_ Drill 6mm by 10mm deep hole 22mm from the centre of the shaft to accept rear locating pin_x000D_ Zero set shaft and indicator reading_x000D_ Locate on the shaft and tighten the grub screw_x000D_ Features and Benefits_x000D_ Pitch is 1.0_x000D_ Display after 1 rev is 0001.0_x000D_ Impact resistant thermoplastic case_x000D_ Ultrasonically welded to prevent tampering and dirt ingression_x000D_ Rear brass bushing with double sealing_x000D_ Drive shaft diameter is 14mm_x000D_ Applications_x000D_ Material handling equipment_x000D_ Rapid transit vehicles_x000D_ Street sweepers_x000D_ Farm machinery_x000D_ Carts for recreational use_x000D_ Certifications_x000D_ IP67 rated
