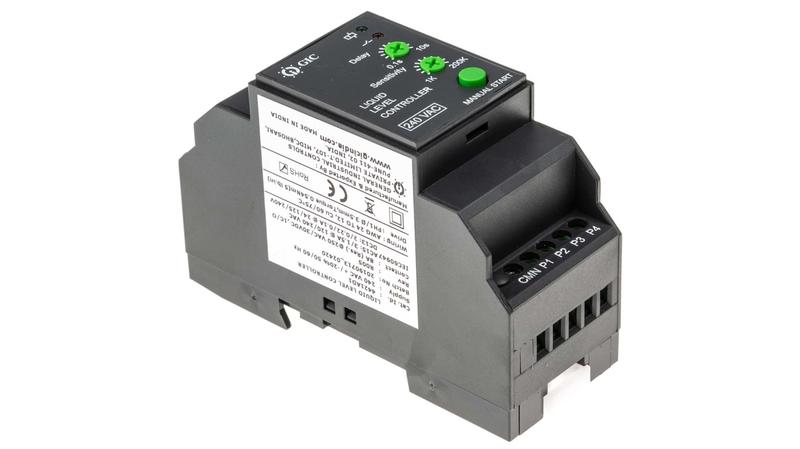

4421AD1 GIC 44 Series Level Controller -, 240 V ac

GIC Level Controllers_x000D_ The GIC 44 series liquid level controller is used to detect the liquid level in a tank where liquids are electrically conducting and device controls the relay output. It has a 240VAC supply voltage and +/-20% accuracy. The mode of operation can be filling and draining, filling only one tank with dual-level monitoring, filling only one tank with single-level monitoring, draining only one tank with dual-level monitoring and draining only one tank with single-level monitoring._x000D_ Features and Benefits_x000D_ Adjustable reaction timer from 0.1 second to 10 seconds_x000D_ Fully automatic operation enabling both draining and filling at the same time with a single device_x000D_ Protects submersible pumps against dry running and prevents overfilling_x000D_ Enables maximum utilization of incoming liquid supply_x000D_ Specially designed corrosion and shock-resistant sensors to ensure problem free operation_x000D_ Includes provision for manual start adjustable sensitivity level between 1kohm and 200kohm_x000D_ Power consumption is 3VA_x000D_ 2m enclosure with Din rail mount_x000D_ Adjustable sensitivity of liquid between 1kohm and 200kohm_x000D_ Certifications_x000D_ CE certified_x000D_ IEC 61000-3-2_x000D_ IEC 61000-4-2_x000D_ IEC 61000-4-3_x000D_ IEC 61000-4-4_x000D_ IEC 61000-4-5_x000D_ IEC 61000-4-6_x000D_ IEC 61000-4-11_x000D_ CISPR 14-1_x000D_ IEC 60947-5-1_x000D_ IEC 61010-1_x000D_ UL 508 listed_x000D_ IP20 rated_x000D_ Compatible Sensors_x000D_ • This Level Controller can be used with a GIC level sensor such as 182-8937
