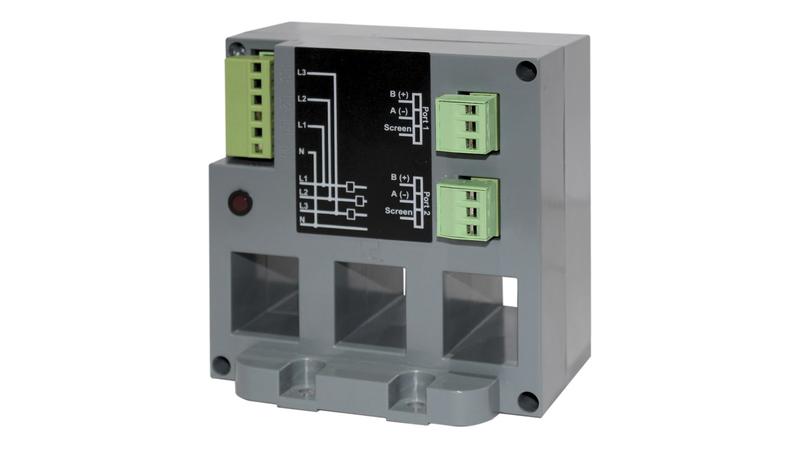

C-TRAN-160A HOBUT 3 Phase No Display Energy Meter

C-TRAN 3 Phase CT with In-built Power Meter_x000D_ The C-Tran is a combined 3 phase multi function AC power transducer and a 3 phase current transformer in one. The meter is fully programmable through either of the two communication ports. The C-Tran can replace traditional multi function meters and 3 separate current transformers with this all-in-one product with RS485 output._x000D_ • RS485 output_x000D_ • Non-volatile EEPROM memory for storing energy registers, current and voltage ratios and calibrated data_x000D_ • 2 communication ports_x000D_ • Accuracy class 0.2 to IEC688_x000D_ • Multiple installation options_x000D_ • 3 phase current options; 100A (914-5357), 160A (914-5351) and 250A (914-5360)_x000D_ Communication Ports_x000D_ Port 1:_x000D_ The port has a fixed data format that can also retrieve measurements and set the transducer operating parameters. Only the baud rate and endian format can be changed on this port._x000D_ Port 2:_x000D_ The port is used as the main communication port. It uses Modbus protocol to retrieve measurements and change the transducer operating parameters. It also enables the connection of a host computer, PLC, RTU or Data logger._x000D_ Parameters measured:_x000D_ • Phase Voltage (V)_x000D_ • Line Voltage (V)_x000D_ • Phase Current (I)_x000D_ • Frequency (Hz)_x000D_ • Active Power Per Phase (W)_x000D_ • System Active Power (W)_x000D_ • Reactive Power Per Phase (VAr)_x000D_ • System Reactive Power (VAr)_x000D_ • Apparent Power Per Phase (VA)_x000D_ • System Apparent Power (VA)_x000D_ • Import Active Power (W.h)_x000D_ • Import Reactive Power (VAr.h)_x000D_ • Apparent Energy (VA.h)_x000D_ • System Power Factor (P.F.)_x000D_ • Amp Demand (Ad)_x000D_ • Maximum Amp Demand (Max.Ad)_x000D_ • Import Watt Demand (Wd)_x000D_ • Maximum Watt Demand Import (Max.Wd)_x000D_ • VA Demand (VAd)_x000D_ • Maximum VA Demand (Max. VAd)_x000D_ • Neutral Current_x000D_ • Hours Run—Voltage based
