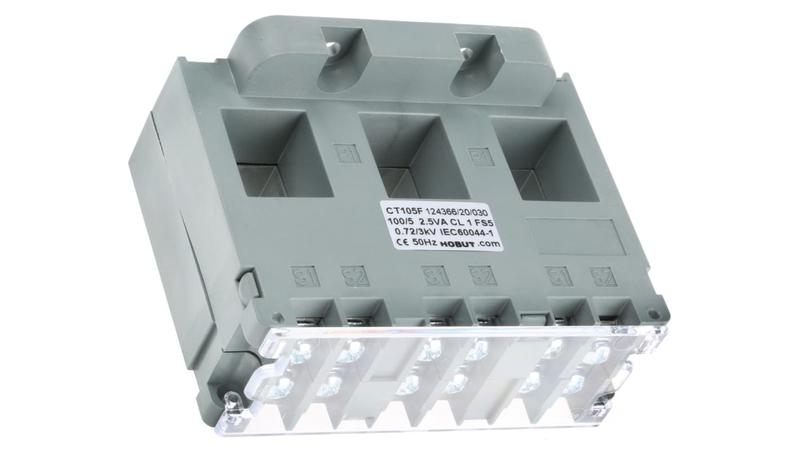

CT105F100/5-2.5/1 HOBUT CT105 Series Base Mounted Current Transformer, 100:5, 21mm Bore

HOBUT Three Phase Current Transformer_x000D_ The HOBUT miniature three-phase current transformer with UKAS calibrated is suitable for the primary current of 100A with 5A secondary. It is for installation onto cables or 21mm maximum busbars. The transformer has an overall width of 105mm allowing installation directly on top of moulded case circuit breakers. The system voltage ranges between 0.72kV and 3kV._x000D_ Supplied with_x000D_ Terminal cover and choice of fixings._x000D_ Features and Benefits_x000D_ Foot mount_x000D_ 21mm apertures_x000D_ Frequency ranges between 50Hz and 60Hz_x000D_ Continuous current is 1.2 x rated current_x000D_ Insulation level is 3kV for 1 minute_x000D_ Overall height of 79mm, width of 105mm and depth of 38mm_x000D_ Operating temperature ranges between -30°C and 80°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS 7626_x000D_ BS EN 61340-5-1:2007_x000D_ BSEN 60044-1_x000D_ IEC 60044-1_x000D_ IEC185_x000D_ CE certified
