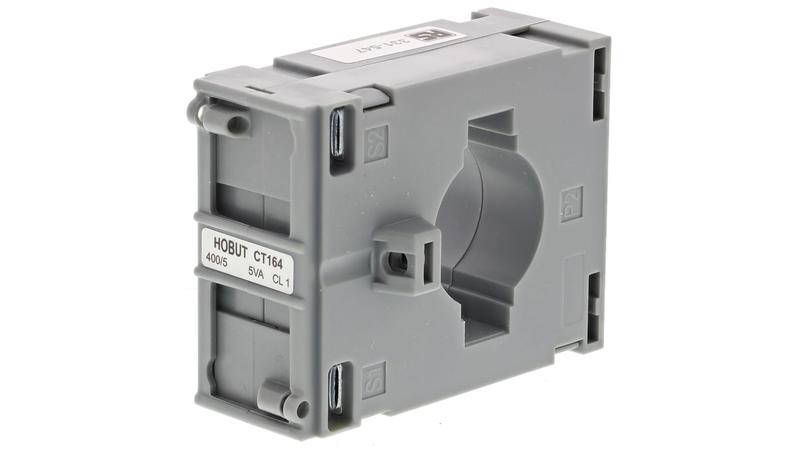

CT164M400/5-5/1-001 HOBUT CT164 Series DIN Rail Mounted Current Transformer, 400A Input, 400:5, 5 A Output, 28mm Bore

Compact Busbar/Base Mounting Current Transformers - Series 162/164_x000D_ A range of compact moulded case current transformers suitable for primary currents from 30A to 800A with built-in sealable terminal covers. For transforming various primary currents into,5A standard secondary using 20/30/40mm busbars or cables, or 28mm cables._x000D_ Built-in sealable terminal covers_x000D_ Mounting feet and busbar screws supplied_x000D_ Narrow width_x000D_ DIN rail clip supplied_x000D_ Dimensions: H78 x W60 x D30mm_x000D_ 28 x 40mm aperture_x000D_ Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1_x000D_ Rated system voltage: 0.72/3kV_x000D_ Ambient temperature range: -30 to 85°C_x000D_ Continuous current: 1.2 x rated current_x000D_ CT Class Information for Series 16_x000D_ 331-395 - Class 1_x000D_ 331-547 - Class 1_x000D_ 331-373 - Class 0.5_x000D_ 331-367 - Class 0.5_x000D_ 331-446 - Class 0.5_x000D_ Current Transformers
