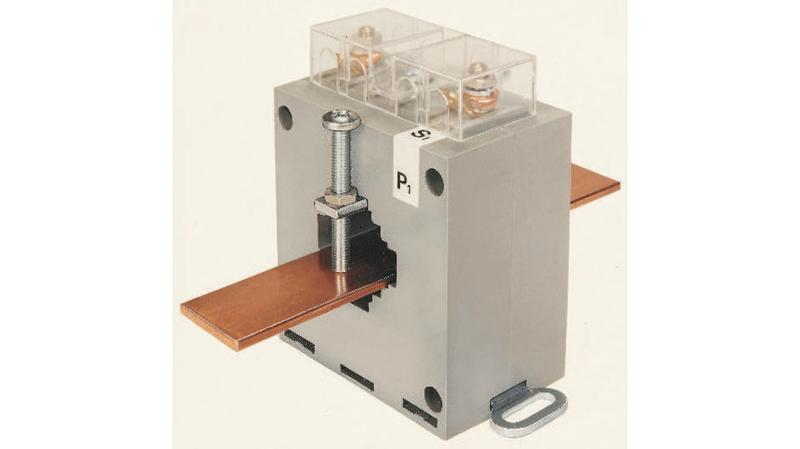

Moulded Case Current Transformer – 24mm Aperture_x000D_
Power consumption 2.5VA, 50/60Hz_x000D_
Accuracy class 1_x000D_
20 or 30mm busbar mounting_x000D_
Suitable for circular conductors 24 aperture_x000D_
Maximum aperture for bar conductors 30x10mm (type 6)_x000D_
Operating temperature range –30 to +85°C_x000D_
Secondary terminals M5 studs with lock washers, nuts and terminal cover_x000D_
Full scale deflection currents can be selected by passing more than one conductor turn through the centre of the transformer, see adjacent table_x000D_
Protection to IP54_x000D_
BS7627/IEC185 and IEC60044-1_x000D_
Conforms to BS 3938-1973 and IEC_x000D_
CE marked in compliance with relevant European Directives_x000D_
Manufactured to ISO 9001_x000D_
Supplied with_x000D_
base mounting feet and M5 captive nuts._x000D_
