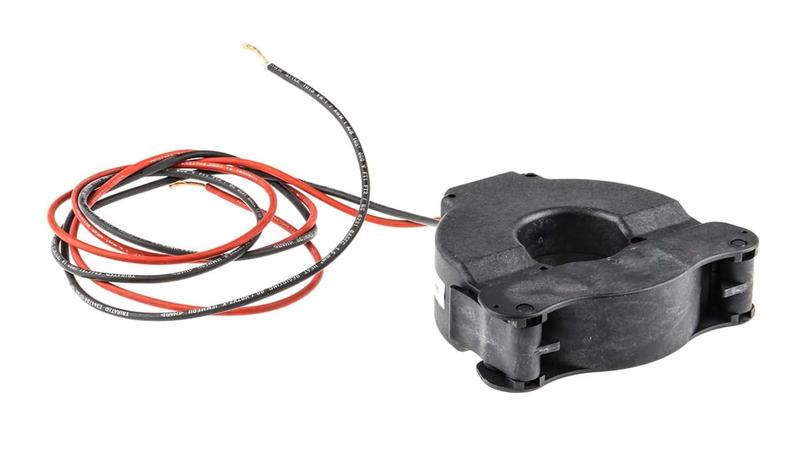

CTSCM40600/5-5/1 HOBUT CTSCM Series Clip Fit Current Transformer, 600A Input, 600:5, 5 A Output

HOBUT Split-Core Current Transformer_x000D_ The HOBUT split-core current transformer has a unique clip-together feature enabling high-speed permanent installation and suitable for primary currents from 100A to 800A. It is for installation into existing networks without the need to disconnect cable circuits or busbars. The system rated voltage ranges between 0.72kV and 3kV and a current ratio of 600:5._x000D_ Supplied with:_x000D_ Moulded case with 1m flying lead._x000D_ Features and Benefits_x000D_ Clip-fit_x000D_ Continuous current: 1.2 x rated current_x000D_ Frequency ranges between 50Hz and 60Hz_x000D_ Insulation rating is 3kV for 1 minute_x000D_ It is supplied with moulded case with 1m flying lead_x000D_ Operating temperature ranges between -30°C and 85°C_x000D_ Overall width of 116mm, depth of 36mm and height is 114mm_x000D_ Certifications_x000D_ CE certified_x000D_ UL94VO approved_x000D_ IEC185_x000D_ BS 7626_x000D_ BSEN 60044-1_x000D_ IEC 60044-1_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
