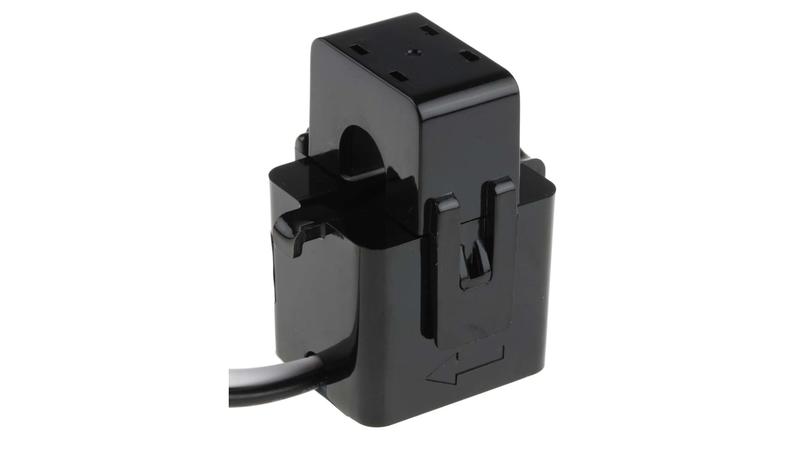

CTSCMWH30/0.333V HOBUT CTSCM Series Split Core Current Transformer, 30A Input, 333 mV Output, 10mm Bore

HOBUT Split-Core Current Transformer_x000D_ The HOBUT split-core current transformer with UKAS calibrated is designed to fit into confined spaces whilst the primary conductor is still live. It has a primary voltage of 720VAC and an input current of 30A. The family of CT’s are a compact design with a mechanical hinge for multiple opening and closing action. It is for connection into existing networks and often for use with multifunction meters that have 0.333V. It is for use with multi-function meter._x000D_ Features and Benefits_x000D_ 1m long flying lead twisted pair (22 AWG)_x000D_ Cable mounting_x000D_ Class 1 accuracy_x000D_ Construction- ferrite core material_x000D_ High Sensitivity_x000D_ Inner diameter of 10mm_x000D_ Linearity with minimum phase shift_x000D_ Mechanical hinge_x000D_ Dielectric withstand voltage is 2.5kV for 1 minute_x000D_ Input frequency 50 Hz to 400 Hz_x000D_ Operating temperature ranges between -15°C and 50°C_x000D_ Certifications_x000D_ CE certified_x000D_ UL94V-0 approved_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
