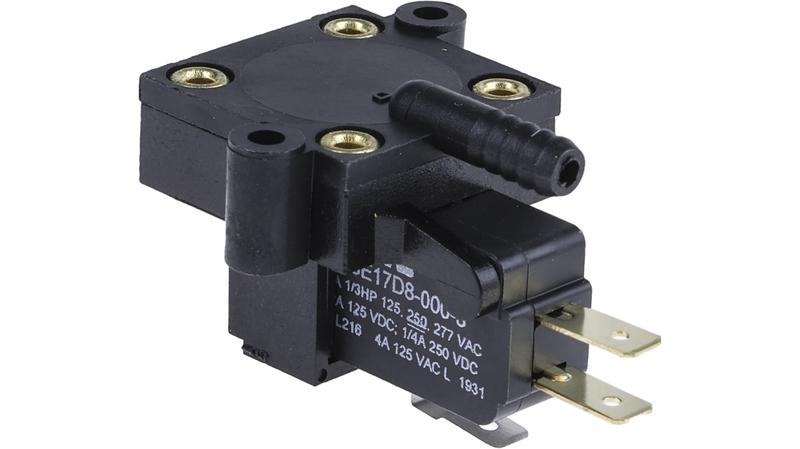

6101-0004 Herga Pressure Sensor, 0.07bar Min, 2.75bar Max, Relay Output, Differential Reading

Sensitive - Series 2, Pressure Switch_x000D_ Ratings: from 70mbar to 2.75bar_x000D_ Sensitive switches for pressure and differential pressure measurement_x000D_ GF polyester housing, polyurethane diaphragm, PB with gold inlay contacts_x000D_ All are externally adjustable, also mountable in any orientation for a wide variety of applications_x000D_ Termination type: Faston_x000D_ Series 2: Adjustable snap action pressure switches, single port on pressure side, 3 port options: 5.0mm radial, 4.0mm perpendicular or 1/8 NPT brass connection - for NPT adaptors see 536-2577_x000D_ Factory fitted spring for operating pressure range 0.07 to 0.27 bar._x000D_ 3 additional colour coded springs are included for user selection of alternative operating pressure ranges:_x000D_ Red 0.21 to 0.69 bar_x000D_ Dark blue 0.62 to 1.38 bar_x000D_ Yellow 1.31 to 2.75 bar_x000D_ Approvals_x000D_ UL and CSA certified_x000D_ Approvals_x000D_ UL recognised & CSA
