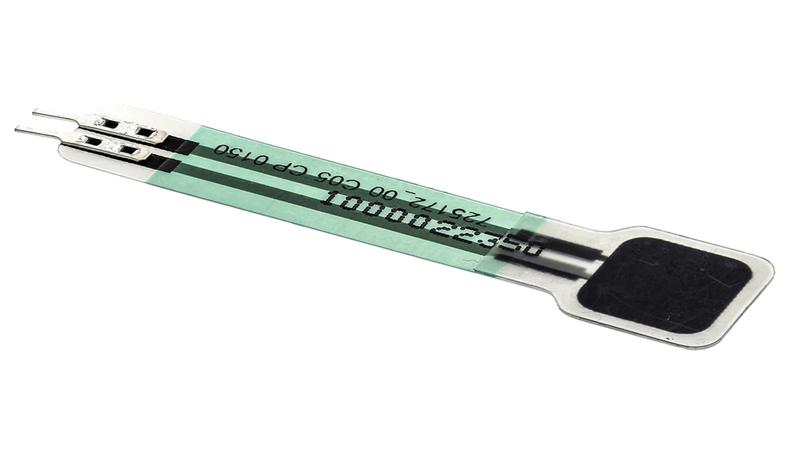

SS-U-N-S-00009 I.E.E. Low Profile Strain Gauge, Compression, Tension Measure, >1MΩ

I.E.E Force Sensitive Resistors - FSR_x000D_ Introducing I.E.E strain gauges, they have been created and designed to measure the strain and force of an item. The gauge sticks to an item, as it deforms the electrical resistance changes - this process can sometimes be referred to as the "gauge factor". I.E.E's strain gauges can be used in a multitude of applications for strain measurement, such as keypads, medical devices and automotive products._x000D_ Features & Benefits_x000D_ • FSR stands for force sensitive resistor_x000D_ • The sensors feature an ohmic resistor whose resistive value decreases when pressure is applied._x000D_ • Two polymer layers are laminated together to obtain sensors less than 1 mm thick: one layer is covered with a network of electrodes and the other with a printed semiconductor_x000D_ • Reliable, trustworthy reading - through their low sensitivity to excessive noise and vibrations_x000D_ • Good measurement repeatability (±2%)_x000D_ • Features a service life that is greater than 10 million cycles_x000D_ • Can also be used in applications for measuring the strain and force within robotics applications and the security industry_x000D_ • Both surfaces are completely covered with laminate, ensuring that the gauge grids are protected from any external damage_x000D_ • Wide operating temperatures range from -30°C to +170°C_x000D_
