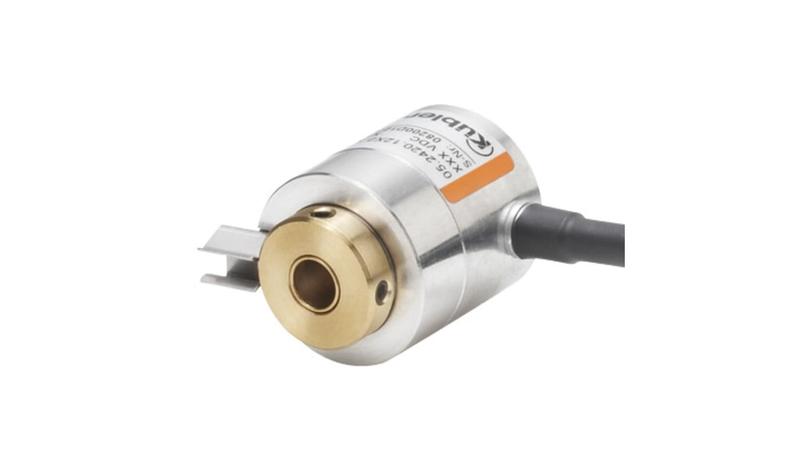

05.2420.1242.1000 Kubler 2420 Series Incremental Encoder, 1000 ppr, Push Pull Signal, Hollow Type, 6mm Shaft

Kubler Incremental Encoder_x000D_ The Kubler 2420 series incremental encoder has an electrical rating of 8VDC to 30VDC, 50mA and the switching frequency of 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1000 pulses per revolution. The encoder diameter is 24mm ideal for use where space is tight._x000D_ Features and Benefits_x000D_ • Cable outlet boasts high degree of strain relief_x000D_ • Ideally suited for use in small devices_x000D_ • Mounting type is flange mount_x000D_ • Operating temperature ranges between -20°C and 85°C_x000D_ • Output signal type is push-pull_x000D_ • Robust bearing construction_x000D_ • Shaft type is hollow_x000D_ • Short-circuit proof outputs_x000D_ Applications_x000D_ • Monitoring or controlling motion parameters such as speed, rate, direction, distance or position_x000D_ Certifications_x000D_ • IP50 rated_x000D_ • IP64 rated_x000D_ • IP65 rated
