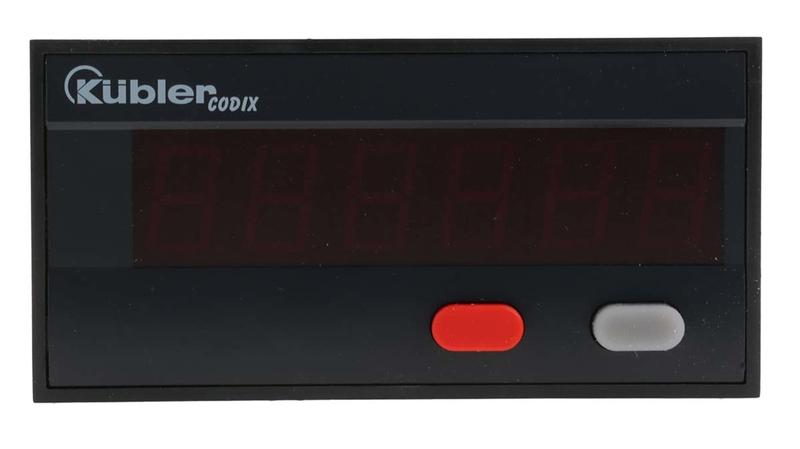

6.540.012.300 Kubler CODIX 540 Counter, 6 Digit, 60kHz, 10 → 30 V dc

Kubler Digital Counter_x000D_ The Kubler CODIX 540 series digital counter is a 6-digit, LED display, panel mount and simple voltage powered device. It has voltage rating ranges between 10VDC and 30VDC. It is pulse counter for fast and slow count pulses, with NPN, PNP input signals. This counter can function as a totalizer with digital inputs._x000D_ This counter has a maximum count frequency of 60KHz._x000D_ Features and Benefits_x000D_ Input pulse shape variable (Schmitt trigger)_x000D_ Overflow condition displayed_x000D_ Simple totalising and quantity counter_x000D_ Large keys – can also be operated when wearing gloves_x000D_ Uniform menu-driven programming and operation_x000D_ Panel cut out dimensions are 92mm x 45mm_x000D_ Plug-in screw terminals_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2
