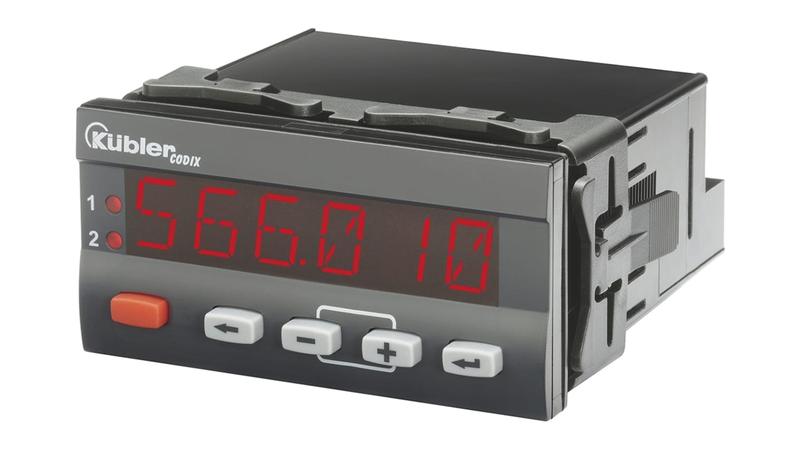

6.566.010.309 Kubler CODIX 566 LED Digital Panel Multi-Function Meter for Current, 45mm x 92mm

Codix 566 Process Controller_x000D_ The codix 566 process controller with totaliser function, displays measured values from all common strain-gauge inputs in high resolution. In addition, it can monitor and control 2 limit values._x000D_ The controller is user-friendly and has a practical quick-start guide for setting the parameters and operating the device._x000D_ 6-digit display, 14-segment LED, 14 mm high_x000D_ Simple programming via 4 keys on the front_x000D_ One front key as well as 2 additional inputs can be programmed for specific applications_x000D_ Sampling rate of 10 readings per second_x000D_ Application-specific characteristics curves via 12 measurement points_x000D_ Manual totaliser function- can be reset separately_x000D_ 2 relay outputs (changeover contacts) for limit monitoring with hysteresis_x000D_ ON/OFF delay function for current measured or totaliser values_x000D_ Digital filter (first-order) for smoothing display fluctuation with unstable input signals_x000D_ Wide range of supply voltage 10 → 30 Vdc/ 90 → 260 Vac_x000D_ Kubler, Strain-gauge Controller
