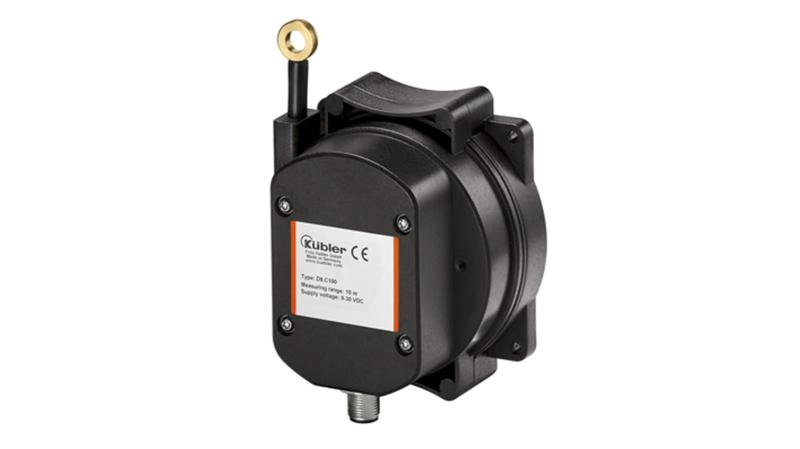

D8.C100.0500.SW34.1000 Kubler C100 Series Draw Wire Encoder

Kubler Rotary Encoder_x000D_ The Kubler rotary encoder C100 series has an electrical rating of 9VDC to 30VDC supply voltage. It has a robust design and high protection level. The draw wire encoder reliably provides accurate length measurement. The encoder is simple, and the optimal integration with the application is the highlight of this product. Many additional options, ranging from the integrated inclinometer up to the relay output, are available. To increase plant availability, this draw wire encoder allows combining a redundant system in a compact housing._x000D_ Features and Benefits_x000D_ • Different types of sensors such as analogue, incremental, CANopen, relay output and switch output_x000D_ • For even higher plant availability_x000D_ • High accuracy at a reasonable price_x000D_ • Linearity up to ±0.1% of the measuring range_x000D_ • Measuring length up to 5m_x000D_ • Operating temperature ranges between -40°C and 85°C_x000D_ • Redundant sensors_x000D_ • Saves cost and space_x000D_ • Simple selection and fast installation. Has a 12-pin M12 connector_x000D_ Applications_x000D_ • The suitable measuring length for every application_x000D_ Certifications_x000D_ • IP67 rated
