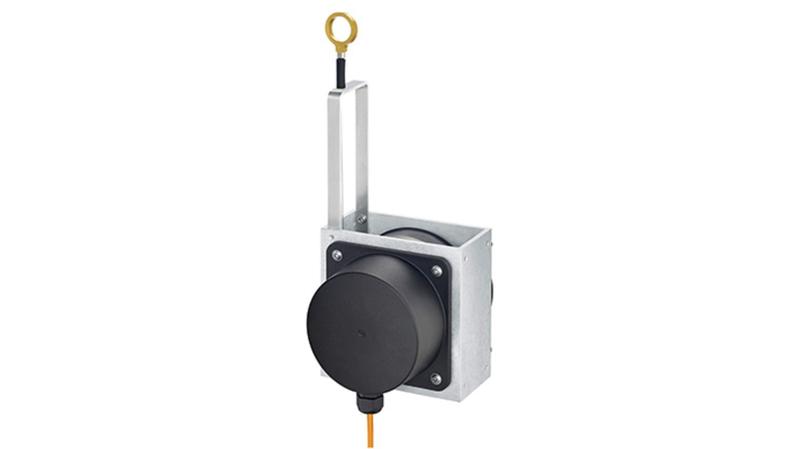

D8.D120.6311.A113.0000 Kubler D120 Series Draw Wire Encoder, Analogue Signal

Kubler Rotary Encoder_x000D_ The Kubler D120 series rotary encoder has an electrical rating of 12VDC to 30VDC. This device has an extremely robust construction. The high protection level and wide temperature range make these new draw wire encoder particularly reliable and durable. Their flexibility and adaptability reflect in the wide range of housing and wire types, the long measuring range and the various interfaces._x000D_ Features and Benefits_x000D_ • Linearity up to ±0.1 % of the measuring range_x000D_ • Measuring length up to 4m_x000D_ • Operating temperature ranges between -40°C and 85°C_x000D_ • Redundant output (mA, V, R, CANopen)_x000D_ • The right measuring wire and the right wire fastening for every application_x000D_ • The titanium-anodized aluminium housing and the stainless steel wires make it suitable to be used in harsh conditions_x000D_ • Various constructions: open, closed housing or housing with perforated sheet steel cover. Has M12 connector_x000D_ Applications_x000D_ • Ideal for outdoor applications_x000D_ Certifications_x000D_ • IP67 rated
