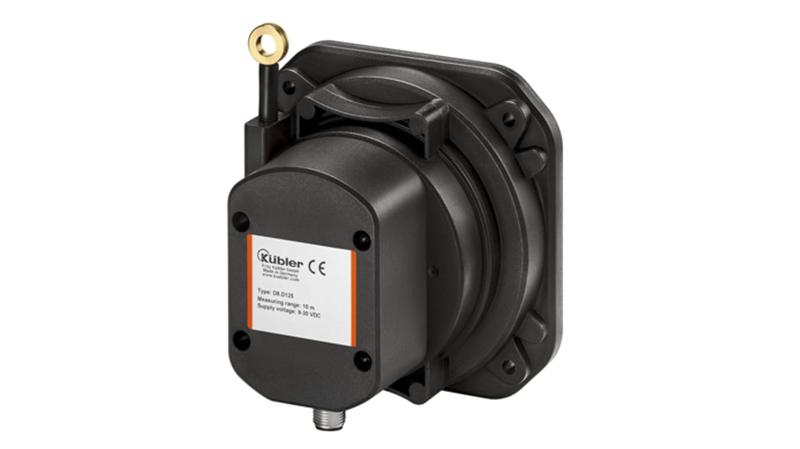

D8.D125.1000.A441.2000 Kubler D125 Series Measuring Draw Wire Encoder, Analogue Signal

Its robust design and its high protection level, the draw wire encoder D125 reliably provides accurate length measurement. Its simple and optimal integration in the application is a particular highlight of this product. Many additional options, ranging from the integrated inclinometer up to the relay output, are available. To increase plant availability, this draw wire encoder allows combining a redundant system in a very compact housing._x000D_ Measuring length 6 ... 10 m._x000D_ Integrated inclinometer._x000D_ Redundant sensors._x000D_ Different types of sensors (analog, CANopen)._x000D_ Linearity up to ±0.5 % of the measuring range._x000D_ High protection level and wide temperature range from -40°C ... +85°C._x000D_ Advantages:_x000D_ The suitable measuring length for every application._x000D_ Cost, space and installation work saving._x000D_ For even higher plant availability._x000D_ Simple selection and fast installation._x000D_ High accuracy at economic prices._x000D_ Reliability and long service life for outdoor applications.
