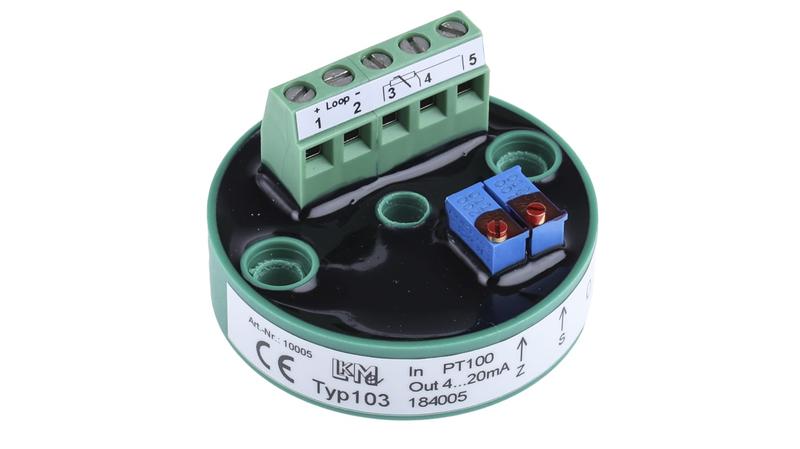

LKM 103/2 LKMelectronic LKM 103 Temperature Transmitter PT100 Input, 24 V

LKMelectronic Temperature Transmitter_x000D_ The LKMelectronic temperature transmitter is an analogue transducer designed for Pt100/Pt1000 sensors. The temperature-sensitive resistance will be transformed into an extremely precise, temperature-linear current output rating ranging between 4mA to 20mA. It has been tuned ex-works according to customer requirements. Further fine-tuning can be arranged by span and zero controllers._x000D_ Note:_x000D_ Using Pt 100 in 2-wire connection clamps 4 and 5 must be Jumpered._x000D_ Features and Benefits_x000D_ Screw terminals_x000D_ Clamping range of 0.13mm2 to 1.5mm2_x000D_ Sensor break and short-circuit detection_x000D_ B-head mounting_x000D_ Polyurethane, black sealing compound_x000D_ Humidity is less than 95%_x000D_ Operating temperature ranging between -25°C and 85°C_x000D_ Applications_x000D_ Office_x000D_ College_x000D_ Certifications_x000D_ EN 61000-6-3:2001_x000D_ EN 61000-6-3:2001
