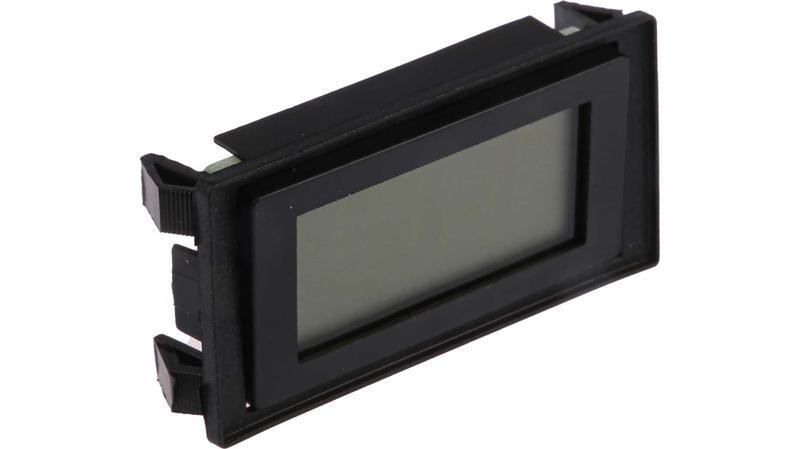

DPM 125 Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %

Lascar Low Power Voltmeter_x000D_ The Lascar low power voltmeter is a compact instrument, ideally suited for low or high volume applications. It features an exceptionally large display in a miniature package. The meter can be directly plugged into a SIL socket or can be panel mounted using the snap-in bezel. This snap-in bezel incorporates a flat reverse printed window giving a superb appearance that cannot be damaged or rubbed of by contact. The on-card solder pads for essential inter-connections make the selection of the operating mode quick and easy with a minimum of external wiring. It has measurement range is between -200mVDC and 200mVDC and supply voltage ranging between 7.5VDC and 14VDC._x000D_ Features and Benefits_x000D_ Digit height is 12.5mm (0.5in)_x000D_ Logic selectable decimal points_x000D_ Auto-zero_x000D_ Auto-polarity_x000D_ Full scale reading (F. S. R.) is 200mVDC_x000D_ Low battery indication_x000D_ Very low current consumptions_x000D_ Long battery life_x000D_ Useful in portable equipment_x000D_ Operating temperature ranging between 0°C and 50°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
