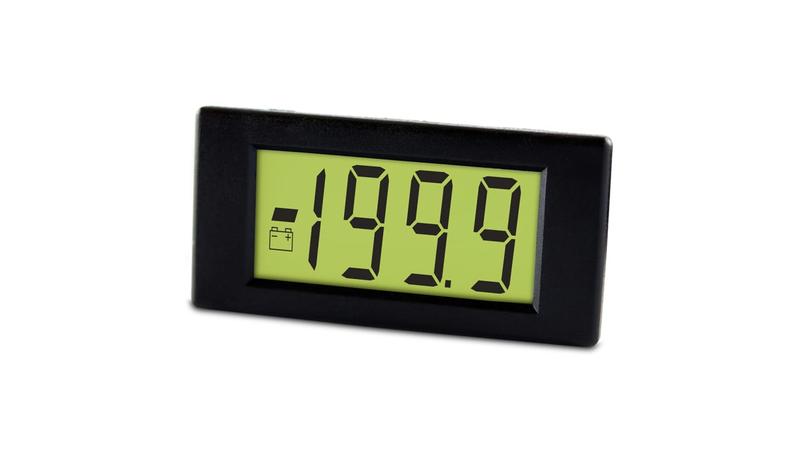

DPM 3AS-BL Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %

Lascar Digital Voltmeter_x000D_ The Lascar digital voltmeter features a negative rail generator that enables the meter to measure a signal referenced to its power GND. It has an LED backlighting for excellent readability under low light conditions. The design of the panel meter's housing allows the module to be easily snapped into a panel. The module’s low cost makes it suitable for high as well as low volume applications. Its full-scale reading is 200mVDC and supply voltage ranging between 3.0 to 7.5V or 6.0 to 15.0V._x000D_ Features and Benefits_x000D_ Digit height is 11mm (0.43in)_x000D_ Auto-zero_x000D_ Auto-polarity_x000D_ Programmable decimal points_x000D_ LED backlight_x000D_ Number of digits are 3.5_x000D_ Operating temperature ranging between 0°C and 50°C_x000D_ Applications_x000D_ Precision instrumentation systems_x000D_ Power supply monitoring_x000D_ Hand held instruments_x000D_ Panel-mount indication_x000D_ Low power voltage measurement_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
