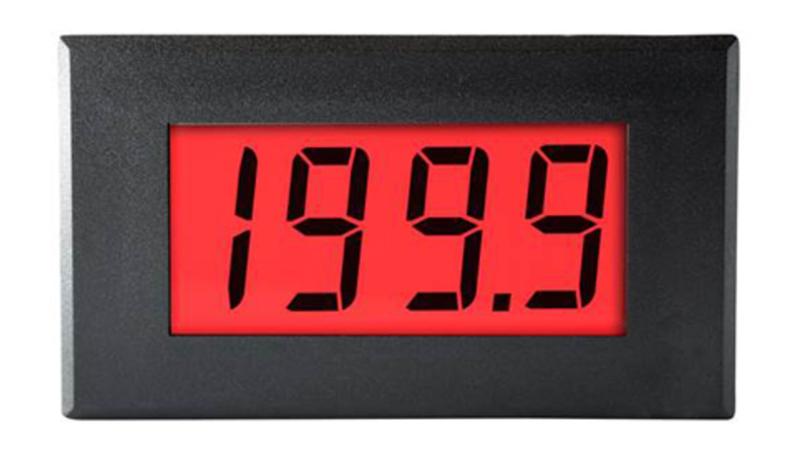

DPM 942-FPSI Lascar DPM Digital Ammeter DC, 40mm x 72mm, ±0.1 %

19mm, 3.5 Digital Display, Lascar 942-FPSI_x000D_ The DPM 942-FPSI is a 3.5 digit LCD current loop meter that can also be used for dual colour go-stop status indication. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance. During standard operation the backlight is green, however if the reading goes beyond the user programmable thresholds, the display will turn red. Three open collector outputs are included, that indicate high, ok and low conditions. Both the backlight colour and outputs can be inverted._x000D_ 4-20mA measurement range_x000D_ 19mm digit height_x000D_ Dual colour backlight with programmable status indication_x000D_ Open collector outputs that mirror the backlight status_x000D_ 5V supply voltage_x000D_ Module setup with DIP switch and two push buttons_x000D_ LCD 4 to 20mA Current Loop Powered Meters
