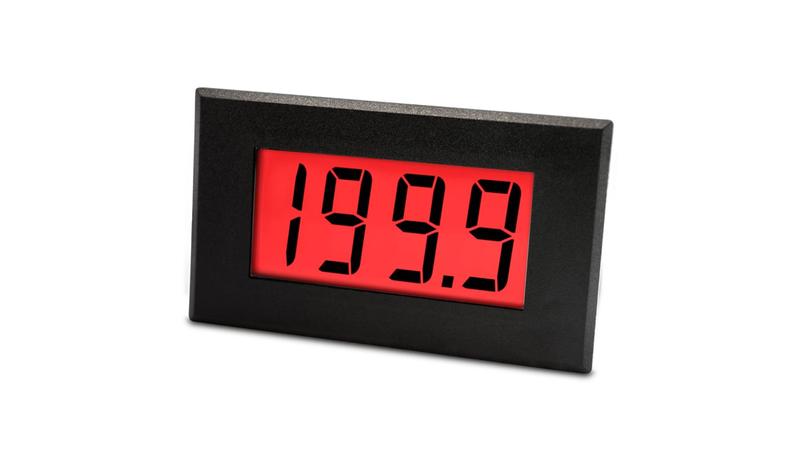

DPM 950S-FPSI Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %

19mm 3.5 Digit Meter with Bicolour Alarm Backlight, Lascar DPM 950S-FPSI_x000D_ A standard 3.5 digit voltmeter that can be used as a dual colour stop/go display. During standard operation the display is green, however if the reading goes outside a programmable threshold the display will turn red._x000D_ 200mV FSD_x000D_ Linearity ±1 count_x000D_ Auto-zero, auto-polarity_x000D_ Dual colour backlight with programmable high and low levels (backlight current is 35mA at 5V Nom.)_x000D_ Open collector outputs that mirror the backlight status_x000D_ 6 way DIP switch and 2 push button set up_x000D_ 16 way IDC cable header_x000D_ Panel cut-out 40 x 72 mm_x000D_ Note_x000D_ Dimensions stated include bezel, module dimensions only are 39 x 71.5 x 11.3mm (excluding pins at 8.4mm)._x000D_ Supplied with_x000D_ Mounting bezel / accessories, operating instructions and connector._x000D_ LCD 5.5 to 19mm Digit Height_x000D_ All have an operating temperature range of 0 to 50°C unless specified otherwise.
