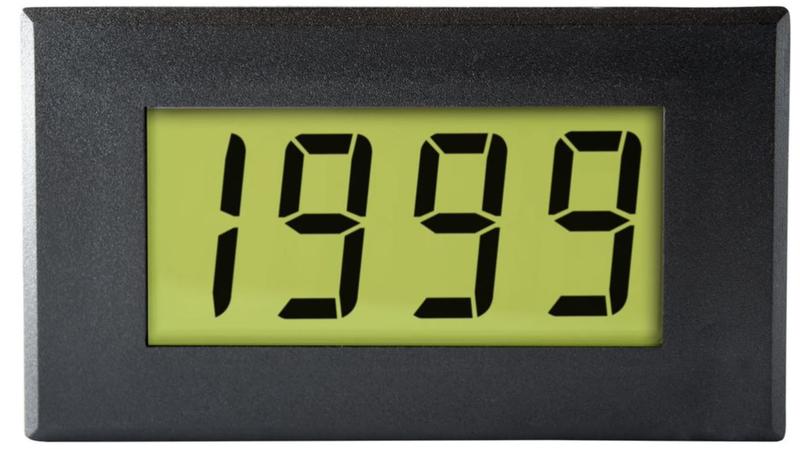

DPM 970 Lascar Digital Voltmeter AC, LCD Display 3.5-Digits ±2 %

Lascar Digital AC Voltmeter_x000D_ The Lascar digital AC voltmeter is an LCD panel meter enabled with a digital hold function that freezes the last displayed reading. It is a true RMS voltage and current meter with 500VAC (2kV ) rating and 2mA full-scale readings as standard. By changing the value of scaling resistors or adding a shunt, this module measures most AC voltages and currents. The calibration is achieved via 2 multi-turn potentiometers for offset and scale. The module is housed in a robust carrier that can be bolted in place or panel mounted using the bezel, window and clips provided with the product. Its full-scale reading is 500VAC and supply voltage ranging between 7.5VDC and 14VDC._x000D_ Features and Benefits_x000D_ Connection to the meter is via screw terminals_x000D_ Digit height is 19mm (0.75in)_x000D_ Screw terminal connections_x000D_ Digital hold_x000D_ Measures voltage and current_x000D_ LED backlighting_x000D_ Number of digits are 3.5_x000D_ Operating temperature ranging between 0°C and 50°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
