EM 32-1B Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %

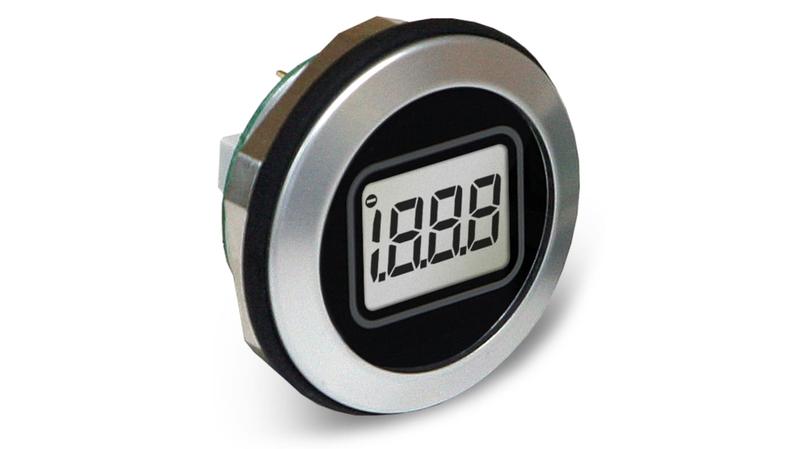

Lascar Digital DC Voltmeter_x000D_ The Lascar digital DC voltmeter is an LCD panel meter designed to be panel mounted in most low and medium volume applications. The module features a round metal bezel, requiring a 32.5mm (1.28in) diameter cut-out. The user can establish the connection via the screw terminals and select the options via the jumper. Its full-scale reading is 200mVDC and supply voltage ranging between 3.5VDC and 6.5VDC._x000D_ Note: Default supply voltage 3.5-6.5VDC, configurable for 7.5 to14VDC operations. Inclusions: Mounting nut and rubber seat to achieve IP67 protection._x000D_ Features and Benefits_x000D_ Digit height is 8mm (0.31in)_x000D_ Auto-zero and auto-polarity_x000D_ Selectable decimal points_x000D_ Requires 32.5mm (1.28in) diameter cut-out_x000D_ Number of digits are 3.5_x000D_ Operating temperature ranging between 0°C and 50°C_x000D_ Applications_x000D_ Panel mount instrumentation_x000D_ Process and control_x000D_ Automotive_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
