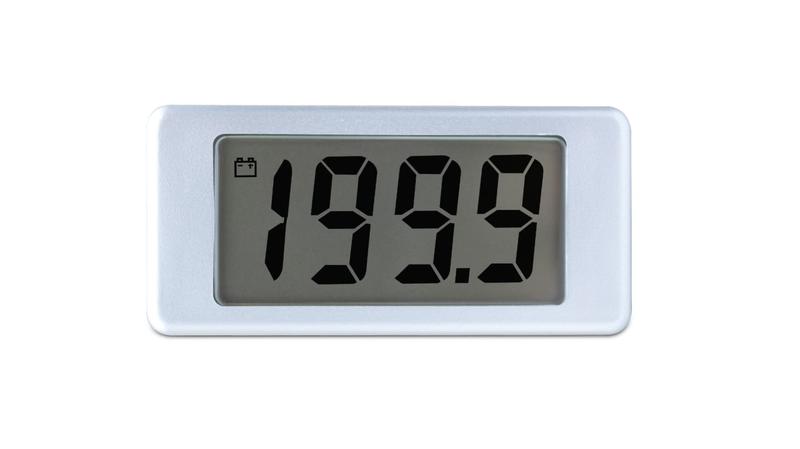

EMV 1025S-31 Lascar EMV 1025S Series Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %

12.5mm, 3.5 Digit 3-wire Voltmeter, Lascar EMV1025S_x000D_ EMV 1025S is an easy to mount LCD digital voltmeter. It features full scale reading, fitted to the panel by locating its screw threaded stud through the hole, adding the washer and tightening the nut provided. The module's connections pass through the hollow stud into the target application._x000D_ Installation time is greatly reduced with only 3 wires to connect. The user need only drill a single 5.5mm hole in the panel._x000D_ Single hole mounting_x000D_ 12.5mm LCD digit height_x000D_ Full scale reading with different versions:_x000D_ - 200mV_x000D_ - 2V_x000D_ - 20V_x000D_ - 200V_x000D_ - Different Decimal Point configurations_x000D_ 3-Wire connection_x000D_ Auto-zero, auto-polarity_x000D_ Low battery warning_x000D_ Splashproof_x000D_ Lascar, Single Hole Fixing_x000D_ LCD compact digital/virtual analogue indicators with common dimensions requiring a single 5.5mm diameter mounting hole unless specified otherwise. A rubber seal is included providing splash proof protection for the units when fitted to the meter during installation. All have an operating temperature range of 0°C to 50°C unless specified otherwise.
