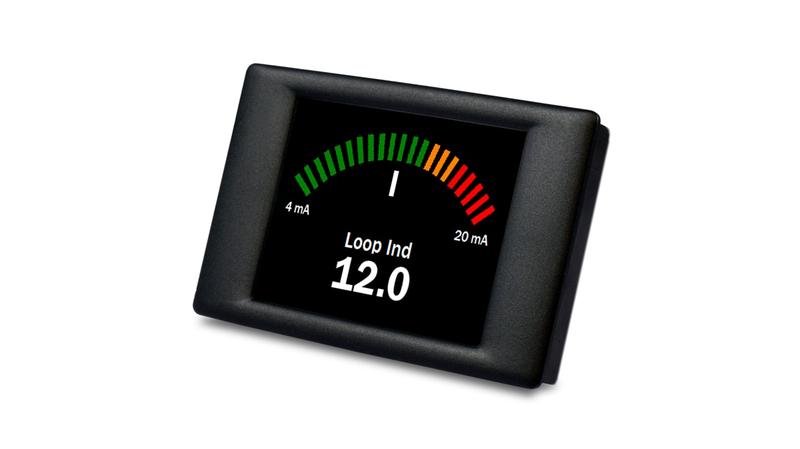

SGD 24-M420 Lascar PanelPilot TFT Digital Panel Multi-Function Meter for Current, 46mm x 74mm

Lascar Current Loop Indicator PanelPilot Compatible Smart Graphics Display_x000D_ The SGD 24-M420 from the PanelPilot range of colour TFT graphics meters features dual 4-20mA analogue inputs, alarm outputs and 2.4" colour touchscreen display. Using the PanelPilot software (available for Windows 7, 8.1 and 10) users can configure their device, choosing from a range of bar-graphs, tank level, analogue style and trend graph configurations. Further customisation of colours, text labels, units and input scaling can be carried out and uploaded to the SGD 24-M420 display through the USB connection._x000D_ Features and Benefits_x000D_ 2.4" colour TFT screen_x000D_ PanelPilot Software can be downloaded for free to setup and customise the display_x000D_ Multiple configurations included_x000D_ Programmable with a USB interface_x000D_ Simple panel mounting solution_x000D_ Operating voltage of 4V-30 d.c._x000D_ Measures 4-20mA current loop_x000D_ Digital hold_x000D_ Applications_x000D_ Automotive_x000D_ Test & Measurement_x000D_ Industrial_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ CE certified
