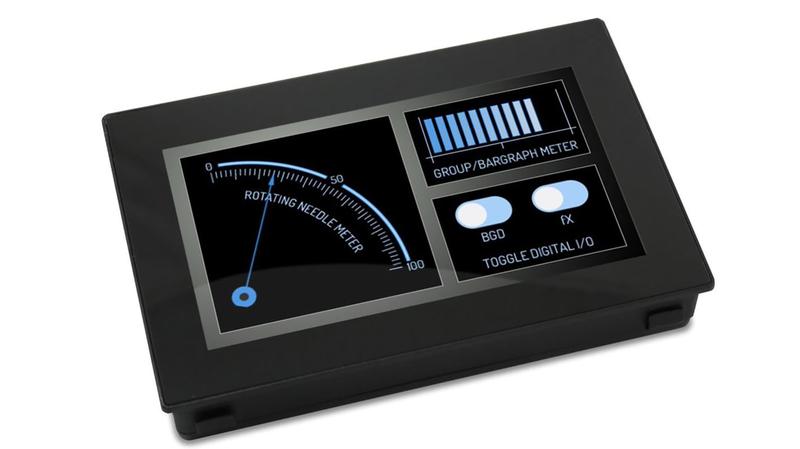

SGD 43-A Lascar PanelPilotACE TFT Digital Panel Multi-Function Meter for Current, Voltage, 77mm x 116mm

4.3” Display with Analogue, Digital, PWM and Serial Interfaces_x000D_ SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. The off-the-shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40 V dc) eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs and serial RS232. Accessories are also available to measure RS485 and temperature._x000D_ Features and Benefits_x000D_ 4.3” TFT screen with 262k colours_x000D_ Capacitive touch-screen functionality_x000D_ 4 analogue inputs (±40 Vdc or 4-20 mA, 16 bit)_x000D_ 8 digital input/output pins_x000D_ 4 PWM outputs (8 bit)_x000D_ 2 alarm outputs_x000D_ Power supply 5-30 Vdc (300 mA typical at 5 Vdc)_x000D_ Windows-based drag and drop construction_x000D_ Programmable with the USB interface_x000D_ 1Gbit DDR2 SDRAM memory inside_x000D_ Simple panel mounting solution_x000D_ Screw terminal connections_x000D_ Communicate with other devices using RS-232, I²2C or SPI_x000D_ Outside dimensions are 119.3 x 79.8 x 20.0 mm_x000D_ If you're new to the PanelPilotAce community or perhaps wondering what extra functionality Version 2.0 can add to your application, watch the following link to see some of the top tips and techniques for rapid display development:_x000D_ https://www.youtube.com/watch?v=4KghwiHcA3M_x000D_ The development kit, SGD 43-A-DK+ (818-7354) is the best choice if you are starting to develop on the PanelPilotACE platform. It includes all you need to begin: an SGD 43-A, a development board and a USB cable. The board provides switches, dials, LEDs and screw terminal connections for all the input and output functionality of the SGD 43-A.
