SGD 43-A-DK+ Lascar PanelPilotACE TFT Development Kit for Current, Voltage

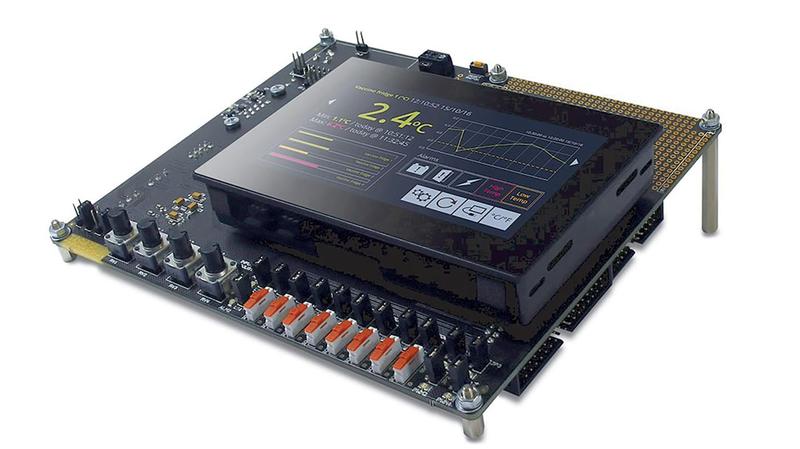

Development Kit for SGD 43-A Display_x000D_ SGD 43-A DK+ is a development kit for the SGD 43-A display. The development board itself provides switches, dials, LEDs and screw terminal connections to quickly connect to and test all of the input/output functionality of the PanelPilotACE display._x000D_ The development kit, SGD 43-A-DK+, is the best choice if you are starting to develop on the PanelPilotACE platform. It includes all you need to begin: an SGD 43-A, a development board and a USB cable. The board provides switches, dials, LEDs and screw terminal connections for all the input and output functionality of the SGD 43-A._x000D_ Panel Pilot ACE Design Studio Software can be downloaded free from the dedicated website_x000D_ PanelPilot ACE Display Specifications_x000D_ 4.3" colour TFT screen_x000D_ 4 single-ended bipolar inputs (± 40 V DC)_x000D_ Responsive capacitive touch-screen functionality_x000D_ PWM and digital output control_x000D_ Programmable with the USB interface_x000D_ Simple panel mounting solution_x000D_ Screw terminal connections_x000D_ Communicate with other devices using RS-232, I²2C or SPI_x000D_ PanelPilot Development Board Specifications_x000D_ Prototyping "free" area allows for circuitry testing to be carried out with the display_x000D_ 2x labelled alarm outputs, coupled with LED indication for output status recognition_x000D_ 8x labelled digital I/O with LED indication_x000D_ 4x labelled PWM outputs with LED indication_x000D_ 4x analogue inputs supporting ±5V DC variable_x000D_ RS232 9-way D-Sub plug_x000D_ Dedicated SGD 43-A & USB connections for uploads & power_x000D_ Supports power via USB or 2.1mm DC power supply (RS Stock No. 706-8088 typical)_x000D_ Note_x000D_ Please consult the datasheet when using an external power supply for operational parameters
