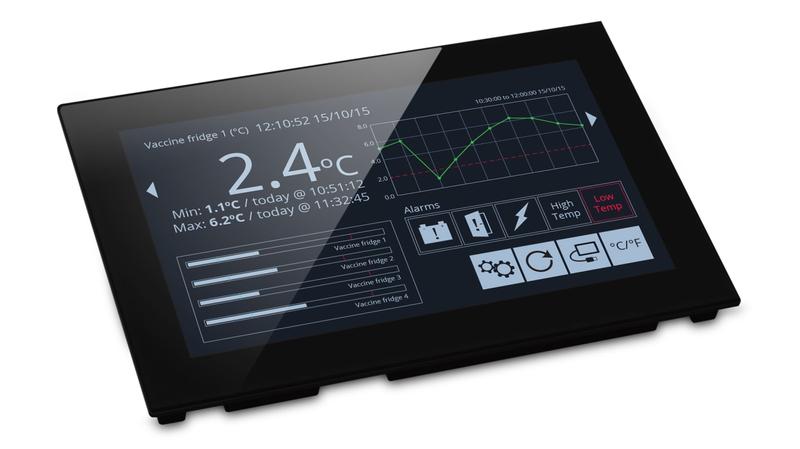

SGD 70-A Lascar PanelPilotACE TFT Digital Panel Multi-Function Meter for Current, Voltage, 117mm x 180mm

7" All-in-One HMI & PLC with Analogue, Digital, PWM & Serial Interfaces_x000D_ The PanelPilotACE SGD 70-A uses Lascar's PanelPilotACE Design Studio, a free drag-and-drop style software package that allows for rapid development of advanced user interfaces and panel meters. The HMI and PLC all-in-one solution features a wealth of hardware interfaces including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on boards to measure temperature or support CANBus._x000D_ 7" TFT display with 16.7M colours_x000D_ Capacitive touch screen_x000D_ Four 16-bit to ±40V d.c._x000D_ 5 to 30V d.c. (1A typical at 5V d.c.) supply_x000D_ Users can program their display using the free PanelPilotACE design studio software. With a wide range or resources the software allows the creation of anything from simple meters and dials, through to advanced user interfaces._x000D_ The PanelPilotACE Design Studio is compatible with Windows 7, 8 and 10 and can be downloaded for free from www.lascarelectronics.com/software/panelpilot-software_x000D_ Applications_x000D_ Industrial Equipment_x000D_ HVAC_x000D_ Energy Management Equipment_x000D_ Automotive_x000D_ Scientific Equipment_x000D_ Process Control & Automation_x000D_ PLC / HMI / Data Acquisition_x000D_ Marine_x000D_ Medical & Healthcare Equipment
