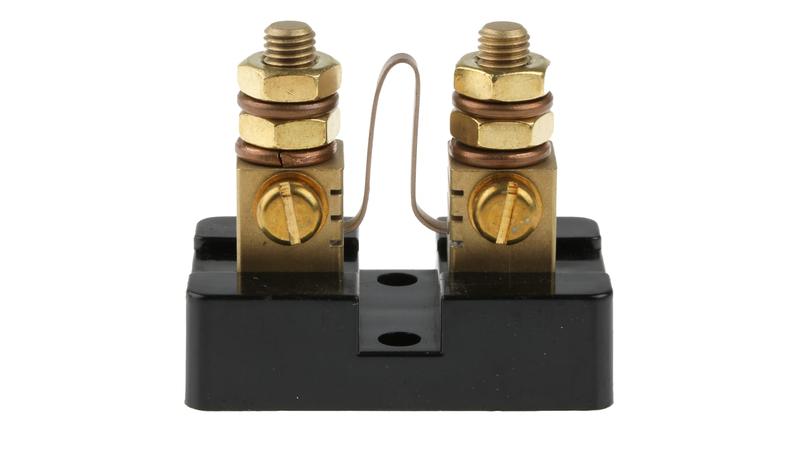

3020-01097-0 Murata Power Solutions Digital Shunt, 5 A Max, 50mV Output, ±0.25 % Accuracy

Murata Power Solutions DC Shunt_x000D_ The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 5A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward_x000D_ simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces._x000D_ Features and Benefits_x000D_ Power supply is 3A,12VDC_x000D_ Power consumption is less than 25W_x000D_ Maximum resolution of 1920(H) x 1080(V)_x000D_ Plastic case_x000D_ Response time is 5 milliseconds_x000D_ Active display area of 434.88mm(H) x 238.68(V)mm_x000D_ Viewing angle is 178?/178? (H/V)_x000D_ Video Interface of 1x BNC Composite In, 1x BNC, Composite Out, 1xVGA and 1xHDMI_x000D_ Audio interface is 1x PC audio_x000D_ Display colours of 16.7M_x000D_ Operating temperature ranges between -10°C and 50°C_x000D_ Applications_x000D_ Audio video systems_x000D_ Cyber hubs
