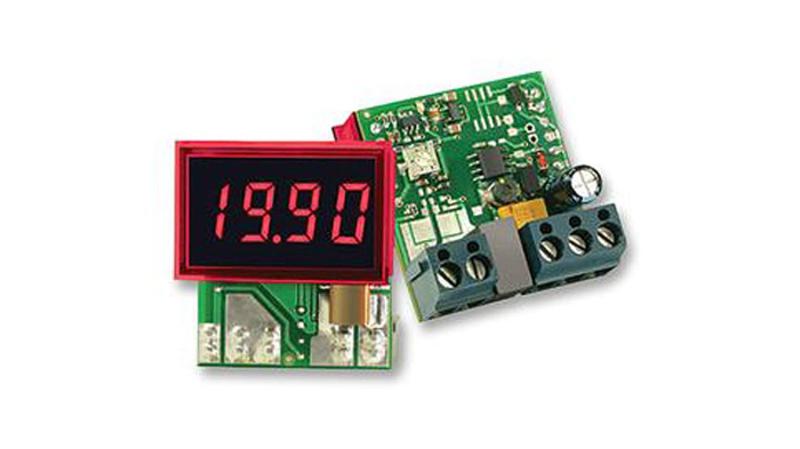

DCA-20PC-3-DC1-RL-C Murata Power Solutions Digital Ammeter DC, 21.29mm x 33.93mm, ±0.15 %

DCA-20PC - Subminiature DC Ammeters with LED Display and Built-In Shunts_x000D_ The DCA-20PC Series are the first digital dc ammeters to include built-in shunts for measuring dc currents up to 20A. Six ranges provide for precision measurement of dc currents from 200uA to 20A. These ammeters are 100% self-contained; no calibration or user-supplied components are required. They even include terminal blocks for your external load circuit, a feature that enables simple 3-wire operation._x000D_ Large, easy-to-read, LED display with 9.4mm high digits_x000D_ LED Colour is the “Low-Power Red” version_x000D_ Built-in shunts for digitally measuring dc currents from 200μA to 20A_x000D_ Functionally complete, no additional components required_x000D_ Wide power supply inputs with a range from 5 to 40Vdc (non-isolated) or 8-36Vdc (isolated)_x000D_ 20mV internal shunt minimizes power loss_x000D_ Includes load connections for easy 3 or 4-wire operation_x000D_ High resolution; Factory calibrated to ±0.1% accuracy_x000D_ Small package size: 35.1 x 22.4 x 26.4 mm_x000D_ Murata Power Solutions Series
