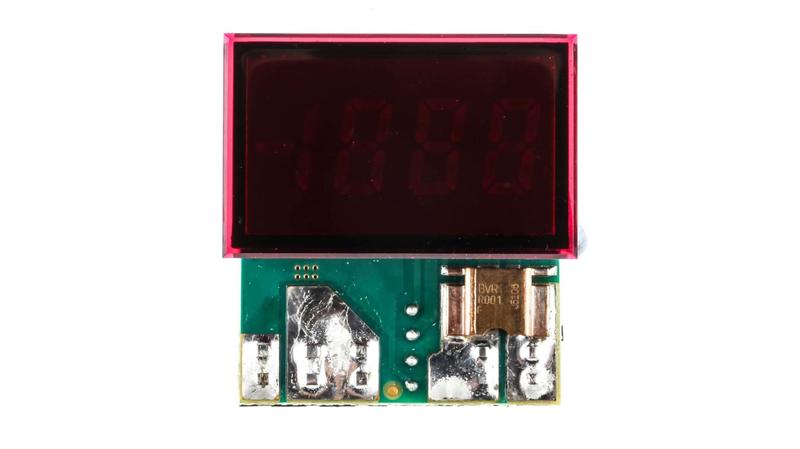

DCA-20PC-6-DC4-RL-C Murata Power Solutions Digital Ammeter DC, 21.29mm x 33.93mm, ±0.15 %

Murata Power Solutions DC Ammeter_x000D_ The Murata Power Solutions DC Ammeter is the first Digital device to include built-in shunts for measuring DC currents up to 20A. It provides six built-in shunts for digitally precision measuring of DC from 200uA to 20A. This Ammeter is 100% self-contained and has no calibration or user-supplied components are required. It even includes terminal blocks for external load circuit, a feature that enables simple 3-wire operation. It has an operating supply voltage of 36VDC and operating supply current of 40mADC._x000D_ Features and Benefits_x000D_ 20mV internal shunt minimizes power loss_x000D_ 8VDC to 36VDC isolated-supply models for high-side shunts_x000D_ Cut-out height is21.29mm_x000D_ Cut-out width is 33.93mm_x000D_ Depth is 26.4mm_x000D_ Full scale load current is 19.99ADC_x000D_ High resolution_x000D_ Factory calibrated to ±0.1% accuracy_x000D_ Includes load connections for easy 3-wire or 4-wire operation_x000D_ Internal shunt resistance is 0.001ohms_x000D_ Meter accuracy is ±0.15 %_x000D_ Number of digits are 3.5_x000D_ Operating temperature ranges between 0°C and 60°C_x000D_ Wide power supply inputs: 5VDC to 40VDC for 5V/12/24V/28V applications and 36V to 75V option for telecom supplies_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
