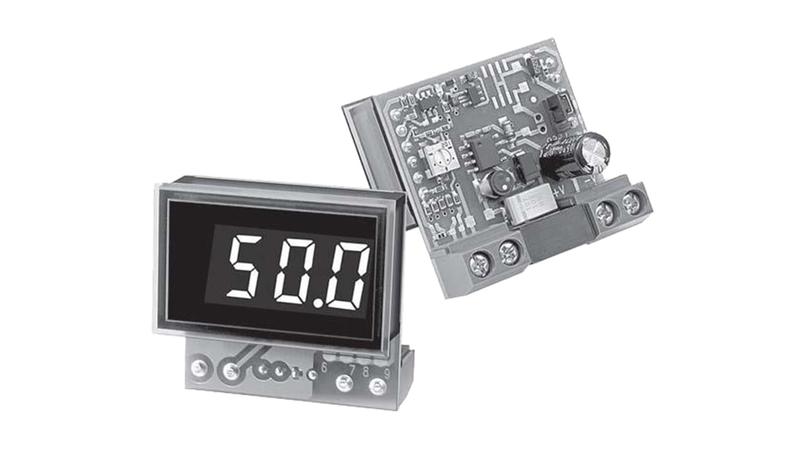

DCA5-20PC-1-DC1-RL-C Murata Power Solutions Digital Ammeter DC, 32.51mm x 46.38mm, ±0.15 %

DCA5-20PC - Subminiature DC Ammeter with LED Display and mV Input for external Shunt_x000D_ The DCA5-20PC Series dc ammeters are specifically designed to display the output of all popular 50mV and 100mV dc-shunts. 25 input ranges provide for precision measurement of dc currents from 1.000A to 2000A. With the exception of an external shunt, the unit is 100% self-contained, no calibration or user-supplied components are required._x000D_ Large, easy-to-read, LED display with 9.4mm high digits_x000D_ LED Colour is the “Low-Power Red” version_x000D_ Scales and displays the output of 5A to 2000A, 50mV and 100mV shunts_x000D_ 50mV shunts also available (e.g stock-no. 810-3267)_x000D_ Factory calibrated to ±0.1% accuracy_x000D_ Wide power supply inputs with a range from 5 to 40V dc (non-isolated) or 8-36V dc (isolated)_x000D_ Reverse-polarity protection_x000D_ Completely self-contained, no additional components required_x000D_ Small package size: 35.1 x 22.4 x 25.4 mm_x000D_ Screw-style terminal blocks_x000D_ Use for digital upgrade for analogue meters_x000D_ Murata Power Solutions Series
