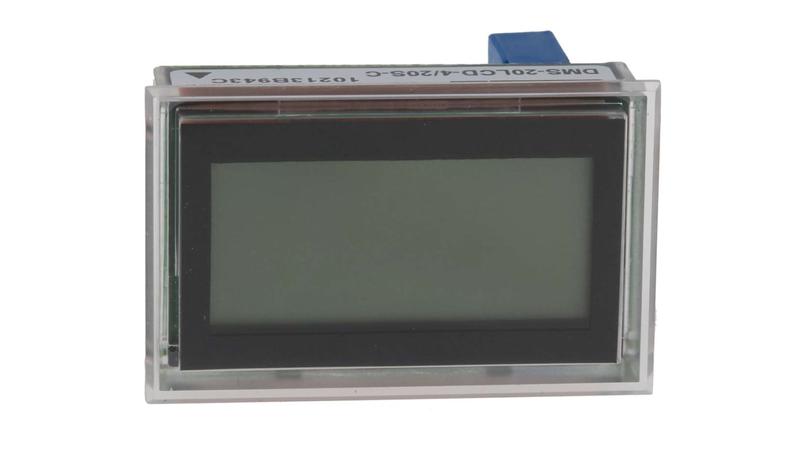

DMS-20LCD-4/20S-C Murata LCD Digital Panel Multi-Function Meter, 21.29mm x 33.93mm

Murata Power Solutions Multi-Function Meter_x000D_ The Murata power solutions self-powered, process indicator has a super-low loop drop that keeps its nominal loop resistance (burden) less than 100Ohms. All operating power is derived solely from the 4mA to 20mA loop current. This eliminates the need for a separate power source. The simple 2-wire hook-up allows the device to be connected anywhere in the loop._x000D_ Features and Benefits_x000D_ Unipolar, bipolar and positive reading models_x000D_ Sub miniature package with less than 0.90in behind-the-panel depth_x000D_ Large, 0.37in/9.4mm high, sunlight-viewable LCD display_x000D_ Non-interacting gain (span) and offset (zero) 20-turn potentiometers_x000D_ DIP-switch selectable range and decimal points_x000D_ Hundreds of different input/readout combinations_x000D_ Vibration-resistant package_x000D_ reliable screw-terminal input connections_x000D_ Cut-out height of 21.29mm, width of 33.93mm and depth of 21.29mm_x000D_ Number of digits are 3.5_x000D_ Digit height is 9.4 mm_x000D_ Operating temperature ranges between 0°C and 60°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ IP65 rated
