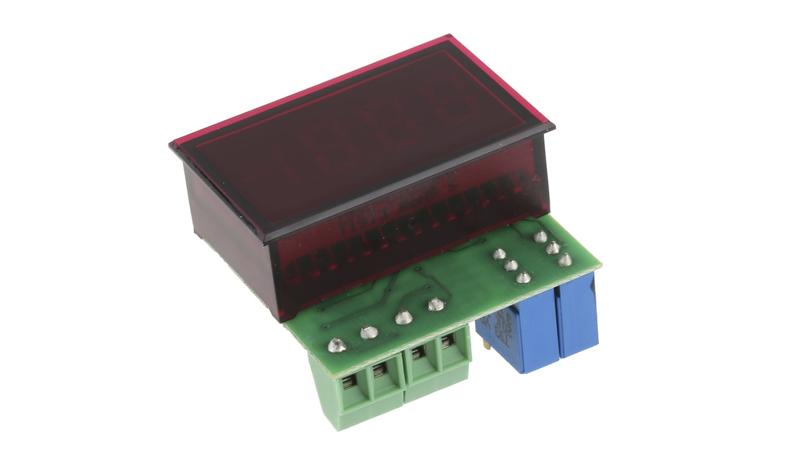

DMS-20PC-0/5-24RL-C Murata LED Digital Panel Multi-Function Meter for Voltage, 21.29mm x 33.93mm

Murata Power Solutions Process Control Monitor_x000D_ The Murata power solutions process control monitor is the world's smallest, full-featured display unit. The DIP switch and potentiometers accommodate hundreds of input voltage/output-reading combinations. This practically eliminates the need for more costly, long lead-time, factory specials" in applications that use several different-range meters. A supplied bezel assembly features metal fasteners and a rubber gasket that simplifies panel mounting and provides excellent resistance to environmental dust and moisture. All these outstanding features combine to make the device perfect meter for prototype and OEM, 0-5V input, process control monitoring._x000D_ Included:_x000D_ Bezel_x000D_ Features and Benefits_x000D_ Accepts 0-5V and 0-10V inputs_x000D_ Large, easy-to-read, 0.37in/9.4mm LED display_x000D_ Choice of 5 LED power/colour options_x000D_ High input impedance, 100kohm_x000D_ 5V to 40V model draws 9mA typ._x000D_ Miniature size: 1.38in x 1.25in x 0.95in_x000D_ High-quality, 20-turn, span (gain) and zero (offset) adjustments_x000D_ DIP-switch selectable range and decimal points_x000D_ Vibration-resistant package_x000D_ reliable screw-terminal input connections_x000D_ Hundreds of different input/readout combinations_x000D_ Cut-out height of 21.29mm, width of 33.93mm and depth of 24mm_x000D_ Screw terminal input connections_x000D_ Operating temperature ranges between 0°C and 60°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
