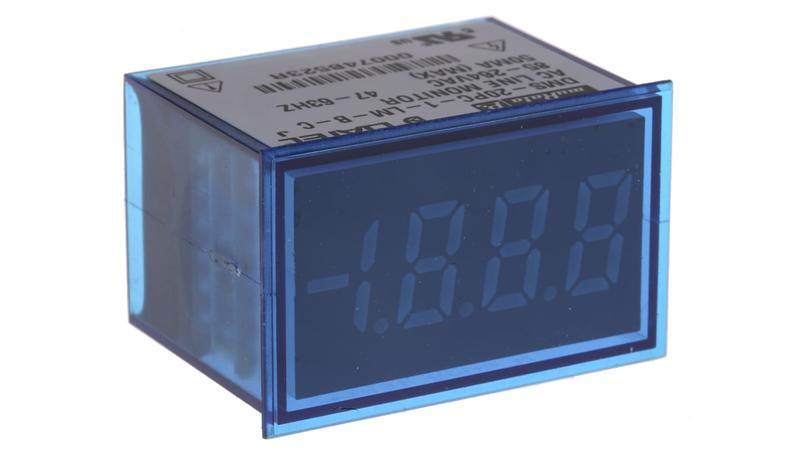

DMS-20PC-1-LM-B-C Murata Power Solutions Digital Voltmeter AC, LED Display 3-Digits ±2 V

DMS-20PC-1-LM - Self-Powered LED AC Voltage Monitor_x000D_ The digital panel voltmeter DMS-20PC-1-LM is a component-size, self-contained, low-cost ac voltmeter for true line measurements. It requires no additional components or auxiliary power. Simply plug it into any wall outlet and instantly read voltages from 85 to 264 Vac._x000D_ DMS-20PC-1-LM employs half-wave sinusoidal averaging (RMS calibrated) and has a display resolution of 1 Vac over its full input range. Packaged in a red-filter case with built-in bezel, the meter is fully encapsulated for ruggedness. The unit is overvoltage protected to 300 Vac._x000D_ This low-cost meter is ideal for industrial, laboratory, office and field-service applications. Its miniature size is perfect for design into high-end consumer electronics, laboratory instrumentation and other products requiring accurate ac line monitoring._x000D_ Digital AC voltmeters with a large 9.4 mm blue LED display_x000D_ Input voltage ranges is 85-264 Vrms_x000D_ Half-wave averaging, RMS calibrated_x000D_ Self-powered, only two connections required_x000D_ Subminiature size with 35x22.4x25.4 mm_x000D_ Plugs directly into USA-style wall outlets_x000D_ Screw terminals for panel mounting_x000D_ Fully encapsulated for harsh environments_x000D_ Murata Power Solutions Series
