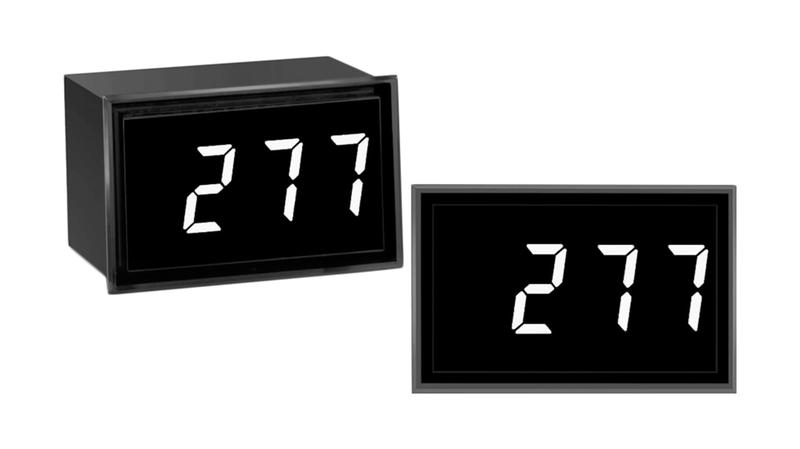

DMS-20PC-2-LM-C Murata Power Solutions DMS-20PC Series Digital Voltmeter AC, LED Display 3-Digits ±2 V

DMS-20PC-2-LM Self-powered LED High-Voltage Monitor_x000D_ The DMS-20PC-2-LM is a component-size, self-contained, low-cost AC voltmeter specifically designed for high-voltage or high-frequency operation._x000D_ The digital Voltmeter's unique power-supply circuitry allows a single model to operate from either 240 to 310V ac with 50/60Hz inputs or from 85 to 140V ac with 400Hz inputs. The meter requires no external components or auxiliary power for full operation._x000D_ Large (9.4mm), easy-to-read, bright red LED display_x000D_ Self-powered, two-terminal operation_x000D_ Dual operating ranges: 240-310V ac at 50/60Hz or 85-140V ac at 400Hz_x000D_ Half-wave averaging, rms calibrated_x000D_ Rugged, epoxy-encapsulated construction_x000D_ Built-in bezel for panel mounting_x000D_ Reliable screw terminals for easy installation_x000D_ Small 1.38" x 0.88" x 1.0" package_x000D_ Applications:_x000D_ Emergency power equipment_x000D_ 277V ac fluorescent lighting systems_x000D_ 400Hz aircraft installations_x000D_ Other applications that require accurate, high-voltage or high-frequency AC line monitoring_x000D_ Approvals_x000D_ UL/cUL/IEC/61010-1_x000D_ Murata Power Solutions Series
