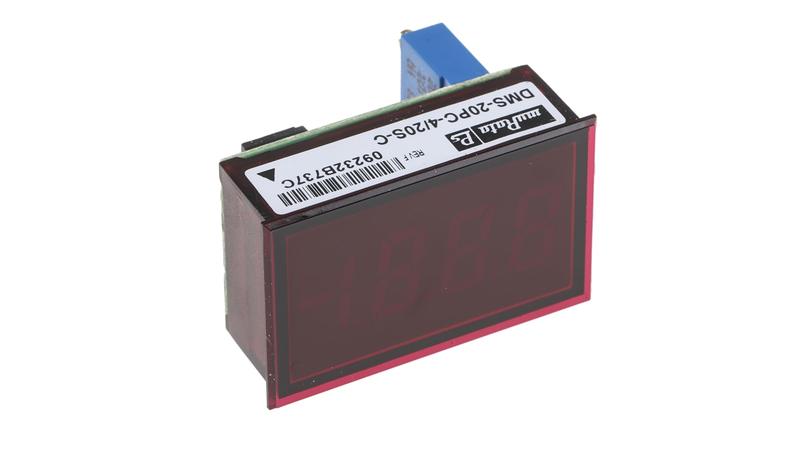

DMS-20PC-4/20S-C Murata Power Solutions Digital Ammeter, 21.29mm x 33.93mm, ±1 %

Murata Power Solutions DC Ammeter_x000D_ The Murata Power Solutions DC Ammeter is the world's first loop-powered digital panel meter with a large, easy-to-read and bright red LED display. All the operating power is derived directly from the loop current itself, no external power supply is required. The large, 0.37in/9.4mm digits exhibit uniform intensity over the entire 4mA to 20mA operating range. Additionally, the total maximum loop voltage drop is only 5V. Its switch and adjustment potentiometers accommodate hundreds of different input current/output-reading combinations. This versatility practically eliminates the need to order more costly, long-lead-time, factory-customized "specials" in applications in which several different-range meters are required. An optional bezel assembly, featuring screw fasteners and a rubber seal, simplifies panel-mounting and provides excellent resistance to environmental dust and moisture._x000D_ Features and Benefits_x000D_ Excellent display intensity_x000D_ Full scale input is 20mA_x000D_ Height is 22mm_x000D_ High-quality, 20-turn, span (gain) and zero (offset)adjustments_x000D_ Length is 24mm_x000D_ Operating temperature ranges between 0°C and 60°C_x000D_ Reliable screw-terminal input connections_x000D_ Vibration-resistant package_x000D_ Voltage drop is 5V_x000D_ Width is 35mm_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
