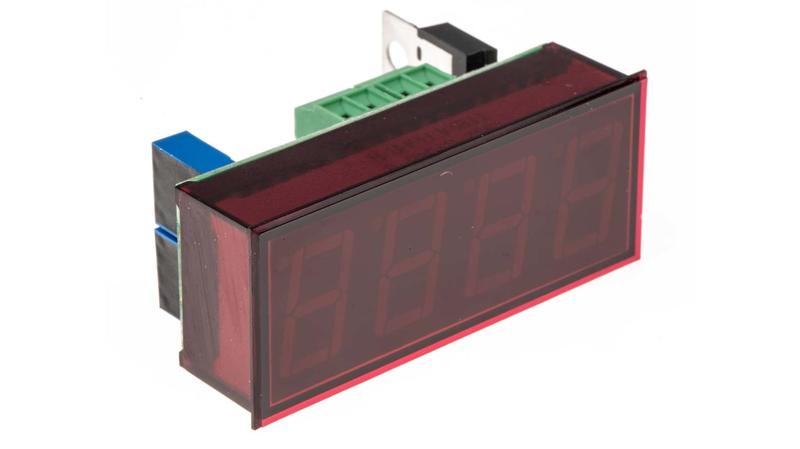

DMS-30PC-4/20S-24RL-C Murata Power Solutions Digital Ammeter, 22.3mm x 53.8mm, ±1 %

Murata Power Solutions Digital Ammeter_x000D_ The Murata Power Solutions digital Ammeter is a 4mA to 20mA current-loop-input panel meter that offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. It features a large 0.56in/14.2mm red display._x000D_ The user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long lead-time, factory specials"– especially in applications requiring several different-range meters. A bezel assembly, featuring secure screw fasteners and an EPDM rubber gasket, is available for applications requiring moisture and/or dust resistance."_x000D_ Features and Benefits_x000D_ 24V Isolated-power models_x000D_ DIP-switch selectable range and decimal points_x000D_ Full scale input is 22mA_x000D_ High-quality, 20-turn, gain/span and zero/offset adjust potentiometers_x000D_ Impedance is 100ohms and 2V loop drop_x000D_ Low power consumption is 15mA from 5V_x000D_ Operating temperature ranges between 0°C and 60°C_x000D_ Reliable screw-terminal input connections_x000D_ Single 5V or optional 7.5 to 32V supply_x000D_ Vibration-resistant package_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
